Installing Side Airbag

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Pull line through the backrest frame to the underside of the seat.

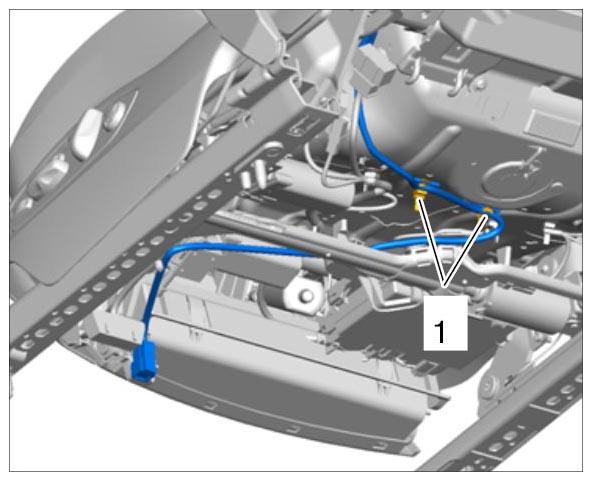

Pull line through the protective sleeve and fasten tie-wrap -1- on the seat wire harness.

Fig 1: Securing Line From Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

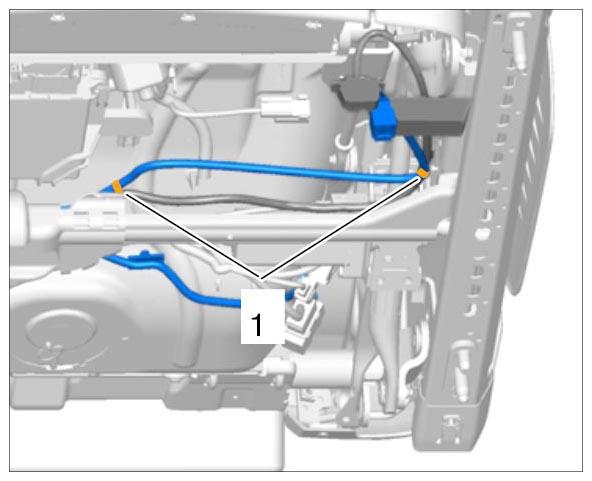

Secure fixing clips -1- under the seat.

Fig 2: Identifying Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

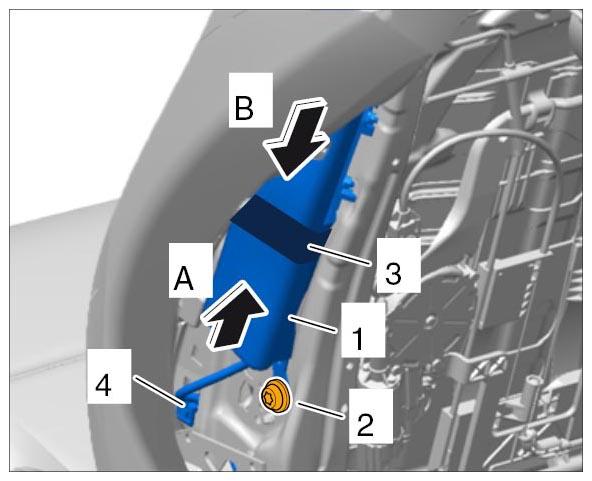

Secure fixing clip -4- .

Fig 3: Installing Side Airbag
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide the side airbag -1- up into the loop -3- (-A- ) and fit it into the bracket -B- .
1. 5.1. On vehicles from model year 2011 to 2014, there is a possibility that the backrest padding will no longer have a loop -3- . The backrest padding is installed using a loop.
  If a new backrest padding is installed, it will no longer have a loop -3- .
Tighten fastening screw -2- on side airbag -1- to → Tightening Torque: 9 Nm (6.5 ft. lb.) until secure.
Fold back padding for front backrest at the outer side bolster. → INSTALLING PADDING FOR FRONT BACKREST - section on "Installing"
