Removing Side Airbag

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of airbag units

Triggering of airbag unit.
System faults can occur.

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A power supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only pull off connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

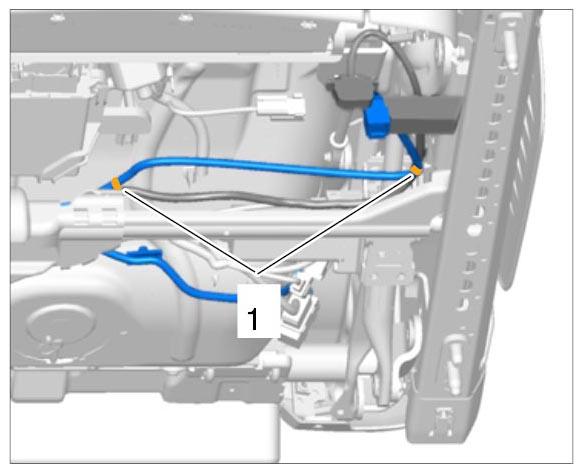

Loosen adhesive tape -1- on the seat wire harness and pull line for the side airbag through the boot.

Fig 1: Identifying Adhesive Tape
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

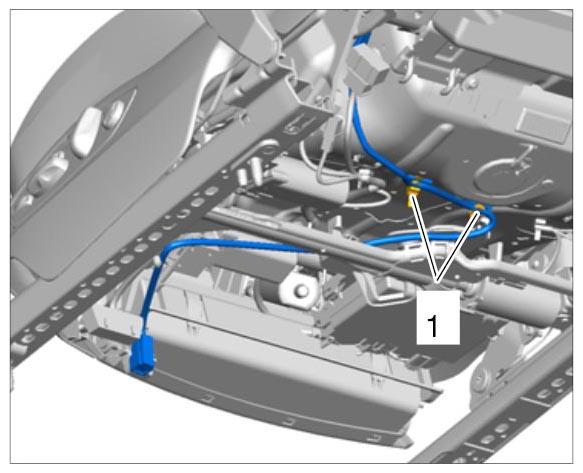

Loosen two fixing clips -1- at the bottom of the seat frame.

Fig 2: Identifying Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull line for side airbag through to the backrest.
Fold away padding for front backrest at the outer side bolster → REMOVING PADDING FOR FRONT BACKREST - section on "Removing".

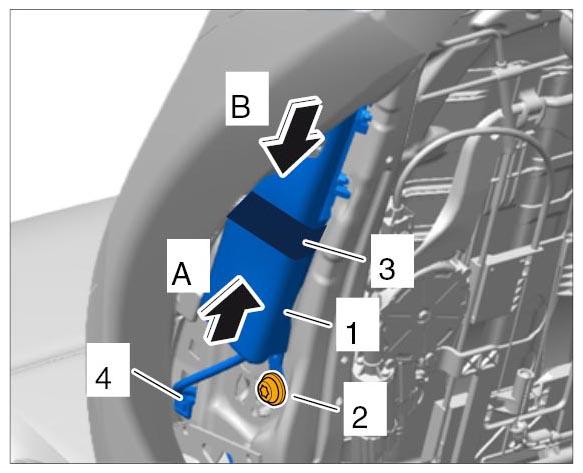

Loosen fixing clip -4- .
Unscrew fastening screw -2- on side airbag -1- .

Fig 3: Removing Side Airbag
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. The loop -3- is no longer used on vehicles from model year 2015 onwards.
Set down side airbag -1- correctly.
