Removing Switch For Airbag

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

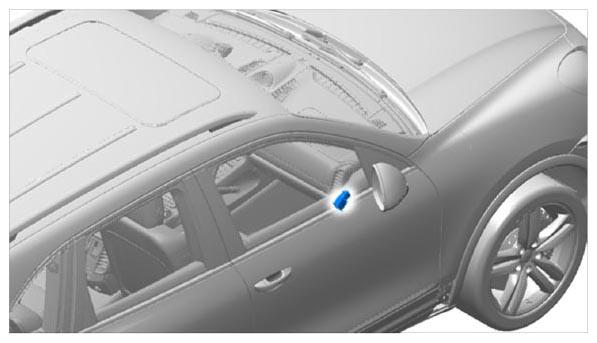

Fig 1: Identifying Switch For Airbag Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open glove compartment lid.
Carefully unclip switch for airbag at the top and bottom -arrow- .

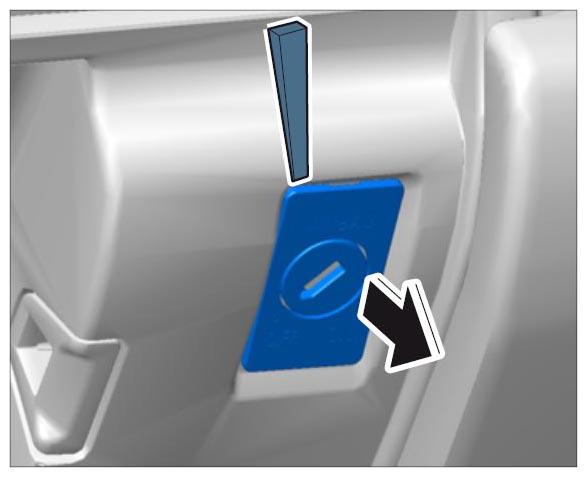

Fig 2: Removing Switch For Airbag
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection for airbag switch -a- and pull it off -A- .

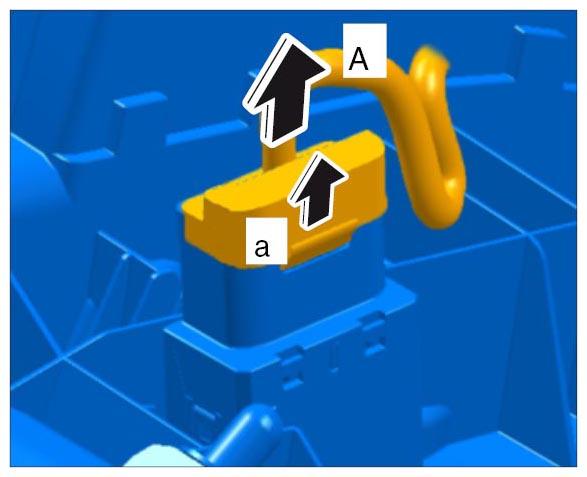

Fig 3: Unplugging Connector On Airbag Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
