Installing Pressure Sensor Mat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position pressure sensor mat.
1. 1.1. Guide the connector -3- and line through the opening on the seat frame -2- .

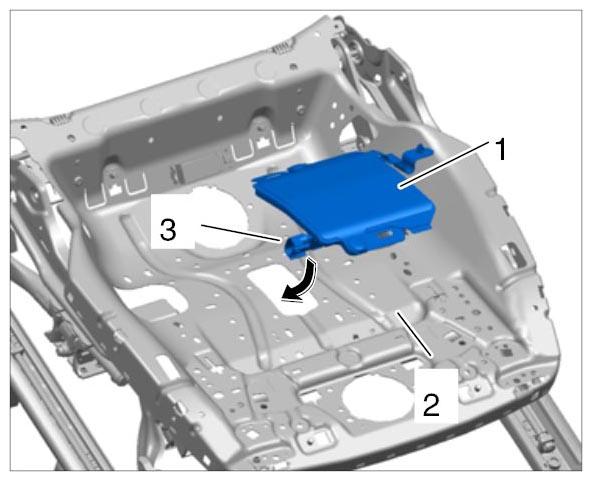

  Fig 1: Positioning Connector And Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Guide the tab on the pressure sensor mat -1- through the seat frame -2- .

  Fig 2: Positioning Tab
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Align the pressure sensor mat -1- on the seat frame -2- and secure it to the seat frame with clips -4- .

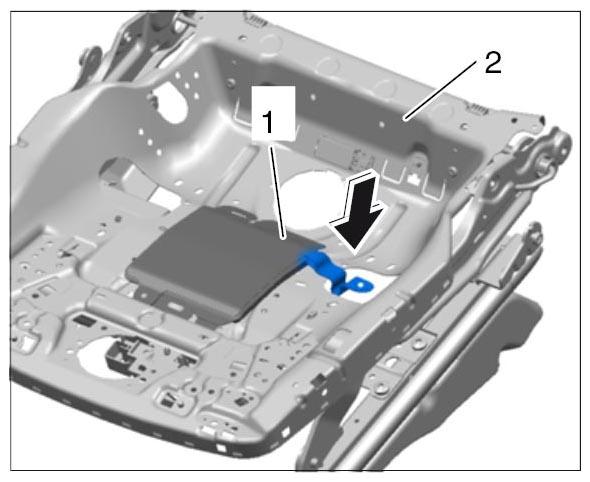

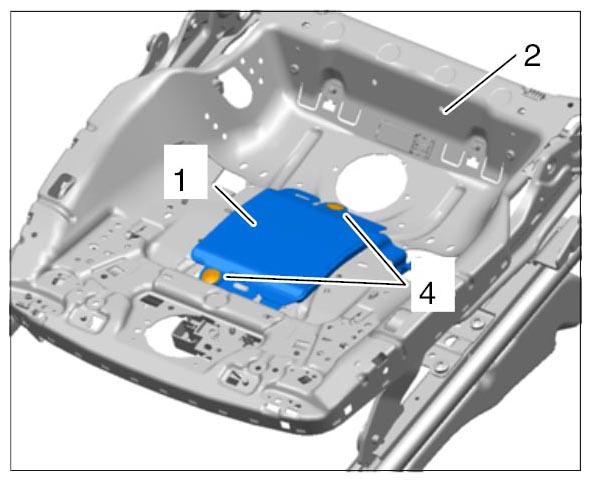

  Fig 3: Clipping Pressure Sensor Mat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the pressure line.
1. 2.1. Route the pressure line -3- as shown and engage the retaining clip -5- in the seat frame.

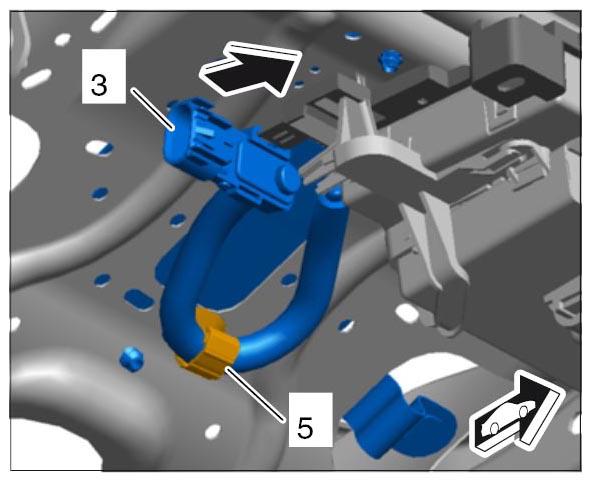

  Fig 4: Securing Pressure Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install padding for seat. → REPLACING PADDING FOR FRONT BACKREST - section on "Installing"
Engage the retaining clip -6- from below through the tab on the pressure sensor mat into the padding -7- .

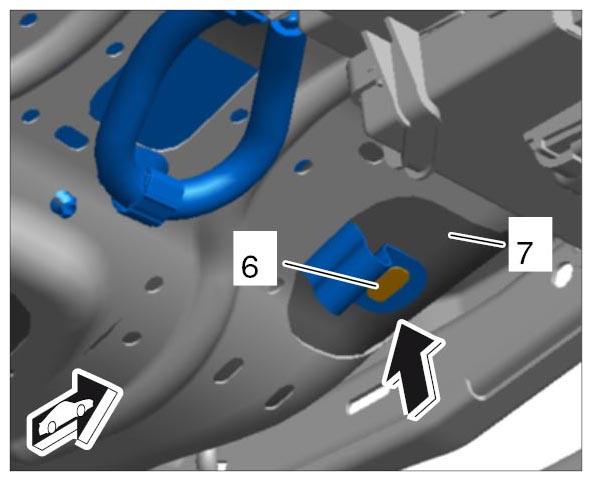

Fig 5: Engaging Retaining Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the pressure line is positioned without tension and is not twisted.
Push on electric plug connection.
