Installing Triggering Unit For Airbag

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position airbag triggering unit on the center tunnel and secure with the three fastening nuts -1- . → Tightening Torque: 9 Nm (6.5 ft. lb.) +10 %-15 %

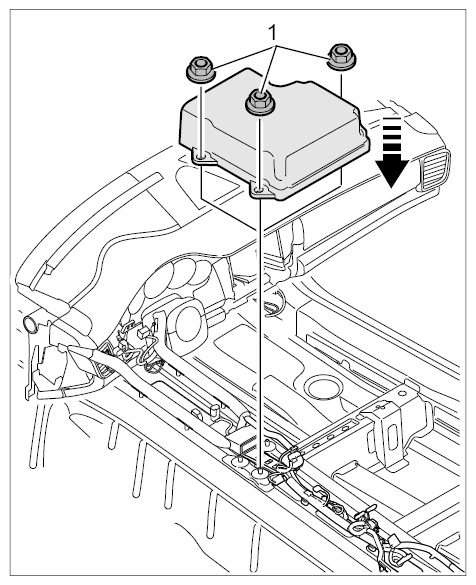

Fig 1: Installing Triggering Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug connection.
1. 2.1. Connect electric connector -arrow- .
2. 2.2. Lock locking clip on the connector as far as it will go -b- .
3. 2.3. Close the lock on the connector -a- .

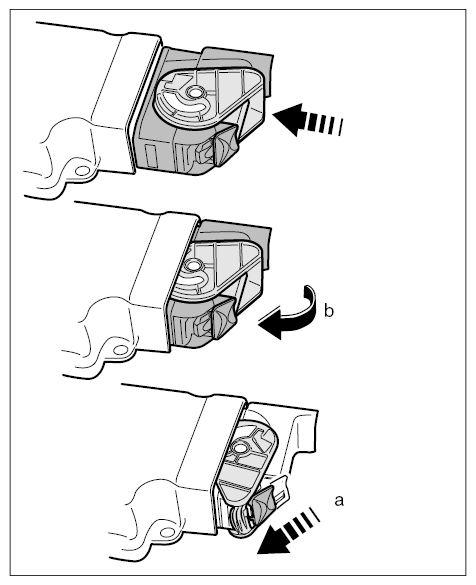

  Fig 2: Connecting Electric Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
