Removing Adjustment Fitting (Seat Belt Height Adjuster)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
After any accident, the seat belt system must be checked systematically for signs of damage. If damage is found, the entire seat belt system must be replaced.
Information

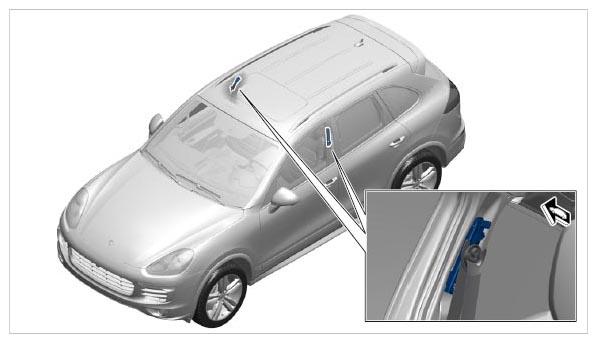

- Some of the repair illustrations show only one side of the vehicle.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
Information
Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.

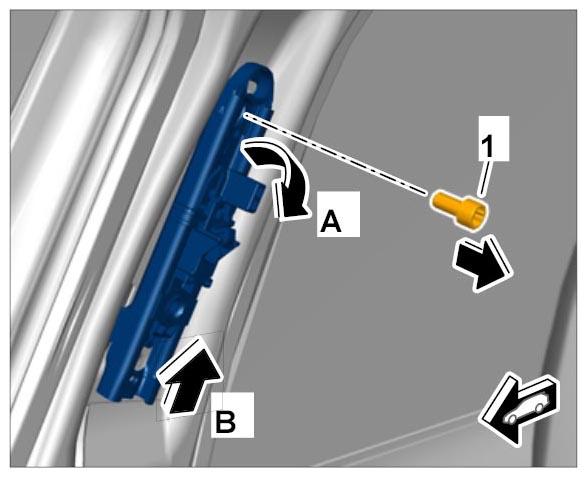

- Position adjustment fitting so that the upper fastening screw is accessible.
- Unscrew the fastening screw -1- .
- Fold adjustment fitting inwards -arrow A- and remove by pulling it upwards -arrow B- .
