Removing Rear Seat-Belt Buckle At The Center

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

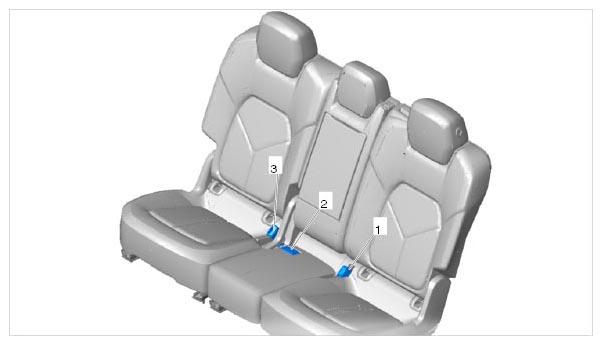

Fig 1: Identifying Seat-Belt Buckles
G09940497Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rear left seat-belt buckle
  2. Rear seat-belt buckle at the center
  3. Rear right seat-belt buckle
  1. Unscrew and remove fastening screw -1-  on the seat trim -2-  at the right.

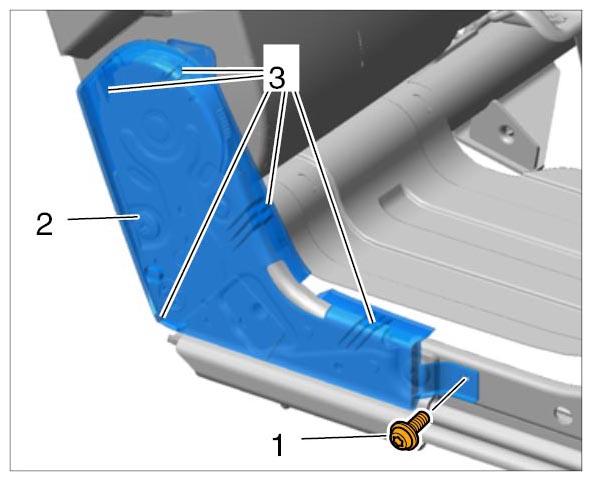

    Fig 2: Identifying Right Trim Panel And Screw
    G09940498Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully unclip the trim panel -2-  at the brackets -3-  and lift it up and off.
  3. Unscrew and remove fastening screw -1-  on rear seat-belt buckle -2-  at the center.

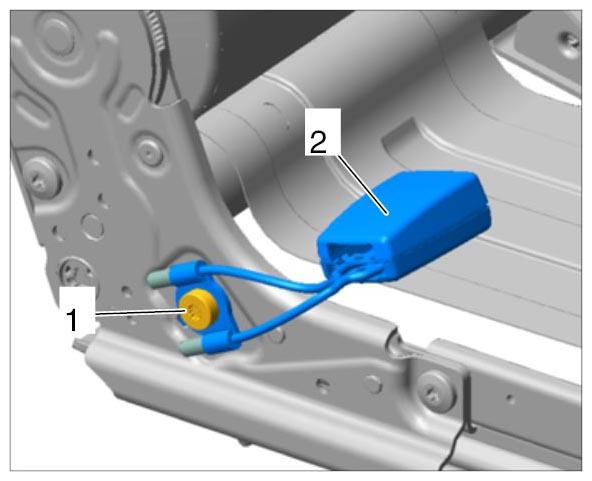

    Fig 3: Identifying Rear Seat-Belt Buckle At Center
    G09940499Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove seat-belt buckle.
