Removing Rear Right Seat-Belt Buckle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

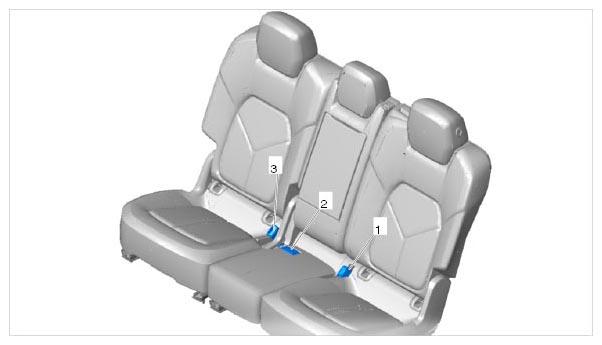

Fig 1: Identifying Seat-Belt Buckles
G09940500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rear left seat-belt buckle
  2. Rear seat-belt buckle at the center
  3. Rear right seat-belt buckle
  1. Unscrew and remove fastening screw -1-  on seat-belt buckle -2-  at the rear right.

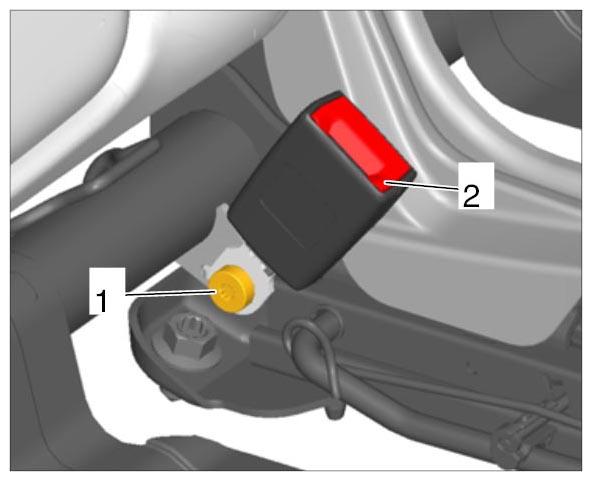

    Fig 2: Identifying Rear Right Seat-Belt Buckle
    G09940501Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove seat-belt buckle.
