Installing Rear Seat-Belt Buckle At The Center

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place rear seat-belt buckle -2-  at the center in installation position.

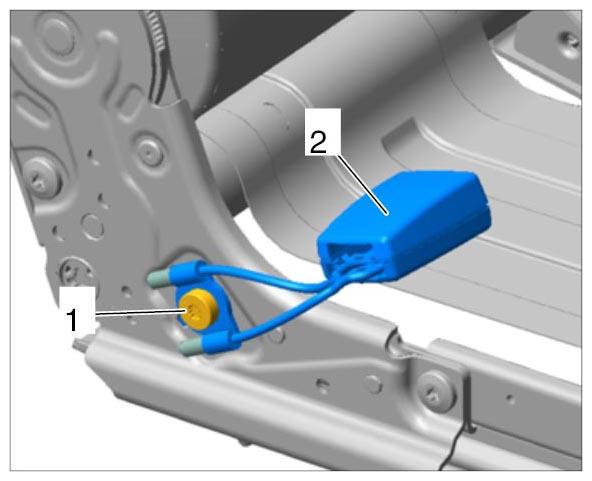

    Fig 1: Identifying Rear Seat-Belt Buckle At Center
    G09940503Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit fastening screw -1-  for the rear belt lock -2-  at the center and tighten it to Tightening Torque 50 Nm (37 ft. lb.)  until secure.
  3. Clip in right trim panel -2-  at the sides of the 2/3-split folding rear seat at mounting points -3-  on the seat frame.

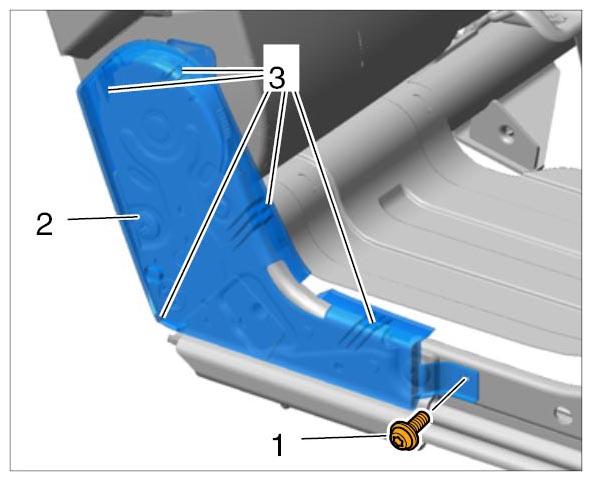

    Fig 2: Identifying Right Trim Panel And Mounting Points
    G09940504Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Fit fastening screw -1-  for the rear trim panel -2-  at the right on the 2/3-split folding seat and tighten to Tightening Torque 3.5 Nm (2.5 ft. lb.)  until secure.
