Installing Rear Left Seat-Belt Buckle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place rear left seat-belt buckle -2-  in installation position.

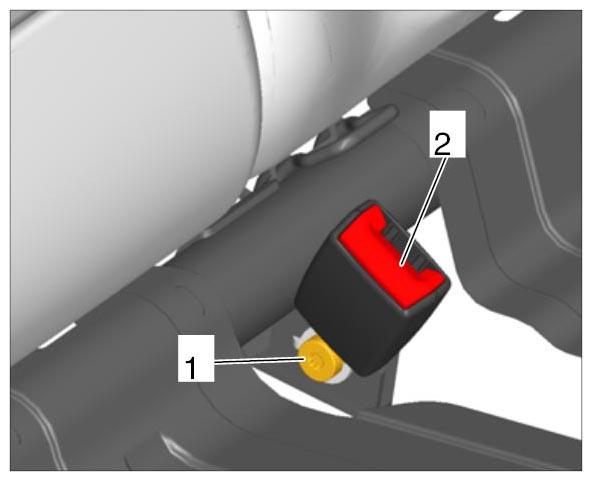

    Fig 1: Identifying Rear Left Seat-Belt Buckle
    G09940502Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit fastening screw -1-  for the rear seat-belt buckle -2-  at the left and tighten to Tightening Torque 50 Nm (37 ft. lb.)  until secure.
