Removing Front Belt Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen two fixing clips -1-  .
  2. Release electric plug connection -2-  (-a-  ) and pull it off -A-  .
  3. Unscrew fastening screw -3-  on the seat-belt buckle.

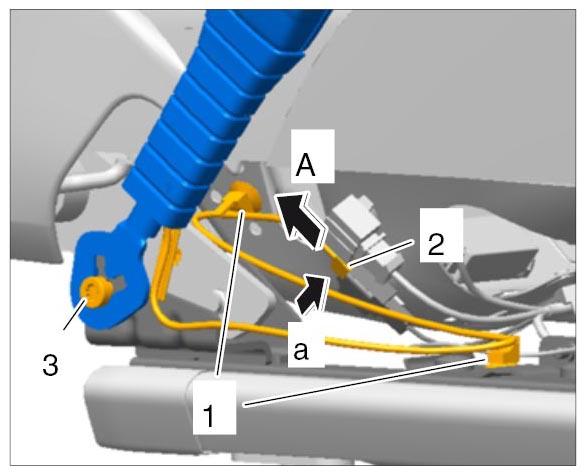

    Fig 1: Removing Seat-Belt Buckle
    G09940490Courtesy of PORSCHE CARS NORTH AMERICA, INC.
