Installing Front Belt Lock
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Always replace the fastening screws on the seat-belt buckle after customer service and reworking. The micro-self-locking screws must not be treated, greased or loosened and then screwed on again.
Information
When routing the wire harness for the front seat-belt buckle, ensure that it is routed without tension.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.
→ Observe specified tightening torques.
→ Carry out a visual inspection of all re-used parts.

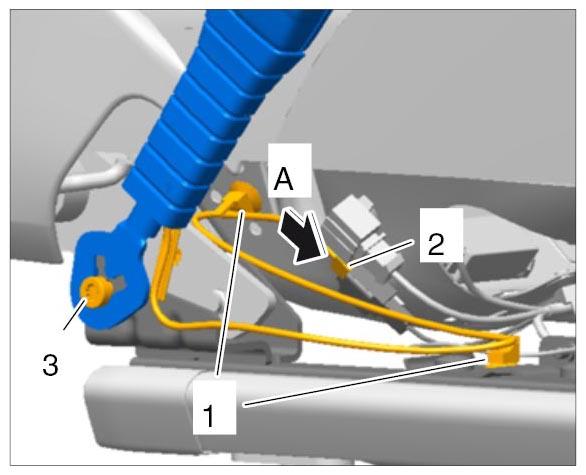

- Tighten fastening screw -3- to Tightening Torque 50 Nm (37 ft. lb.) until secure.
- Insert electric plug connection -2- (-A- ) until the connector engages securely.
- Fit two fixing clips -1- .
