Removing Rear Three-Point Belt At The Left And Right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Incorrect handling of seat-belt pretensioner unit
- Triggering of seat-belt pretensioner unit
→ Observe safety regulations for handling seat-belt pretensioner units.
→ Observe disposal regulations for seat-belt pretensioner units.
→ After disconnecting the battery, wait 1 minute before disconnecting the seat-belt pretensioner unit.
→ Remove ignition key and disconnect the battery. Route or insulate the ground strap so that all contact with a ground carrier is avoided. Read and follow work instructions after disconnecting the battery.
→ If removed for an extended period, the seat-belt pretensioner unit must be stored in a safe place.
→ Transport the seat-belt pretensioner unit in such a way that the seat belt can retract safely if it is actuated.
Information
- Some of the repair illustrations show only one side of the vehicle.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

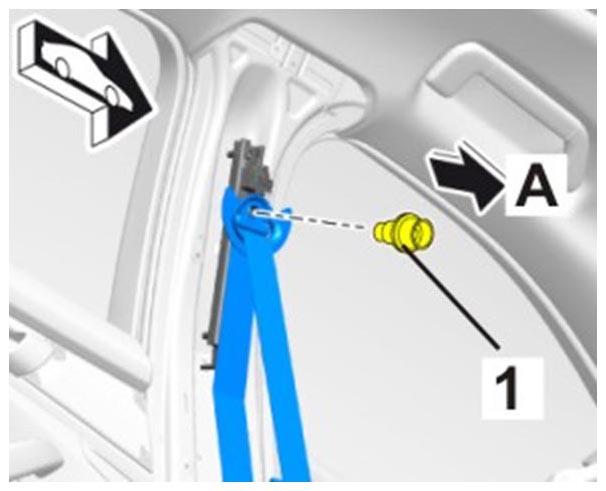

- Unscrew fastening screw -1- on the top belt lug and remove it -arrow A- .

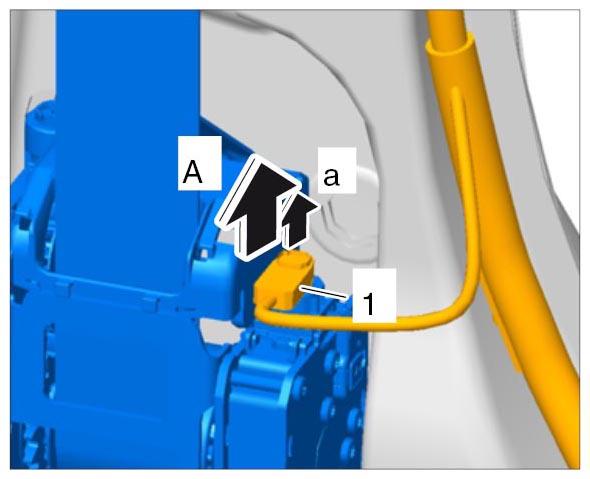

- Release electric plug connection -1- on the seat-belt pretensioner -a- and disconnect it -A- .

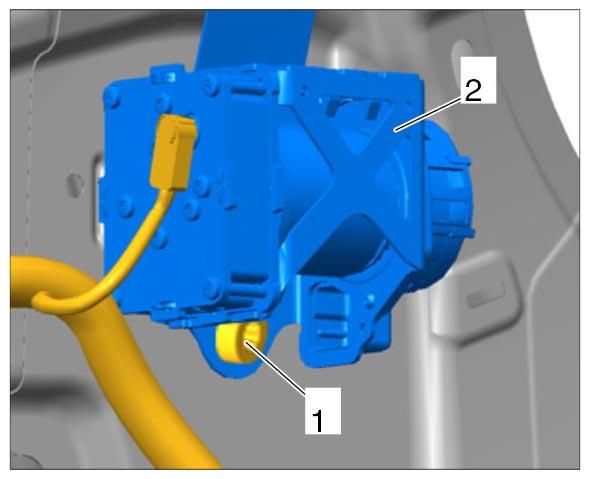

- Unscrew fastening screw -1- on the seat-belt pretensioner -2- .

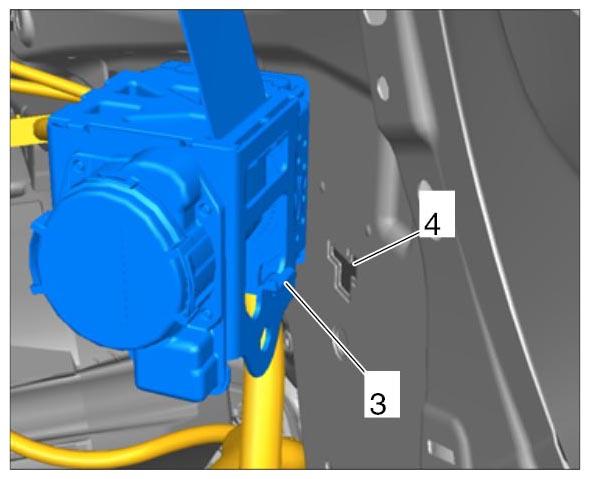

- Lift seat-belt pretensioner mount -3- up out of the bracket in the bodyshell -4- and remove it.
