Installing Rear Three-Point Belt At The Left And Right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

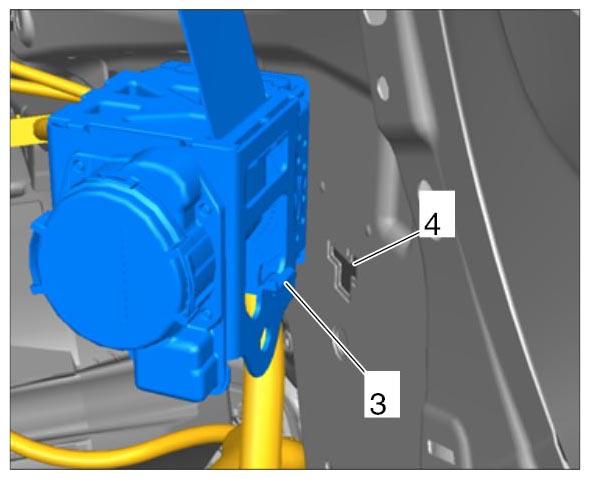

- Insert seat-belt pretensioner mount -3-
into the bracket in the bodyshell -4-
.
Information
Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.

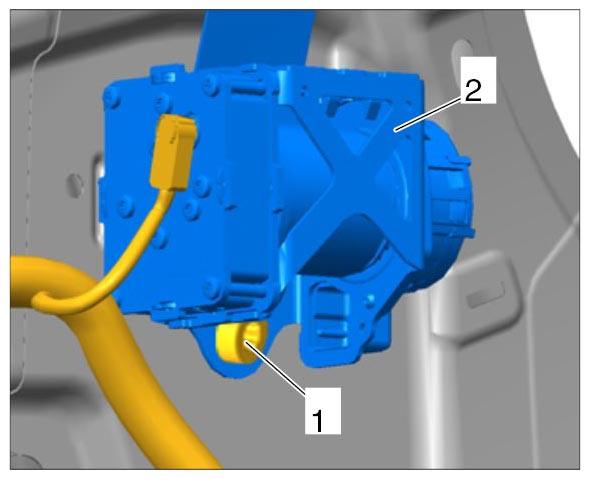

- Tighten fastening screw -1-
on seat-belt pretensioner -2-
to → Tightening Torque: 50 Nm (37 ft. lb.)
until secure.
Information
When routing the electric lines, make sure that they are not routed through the belt-coiling area.

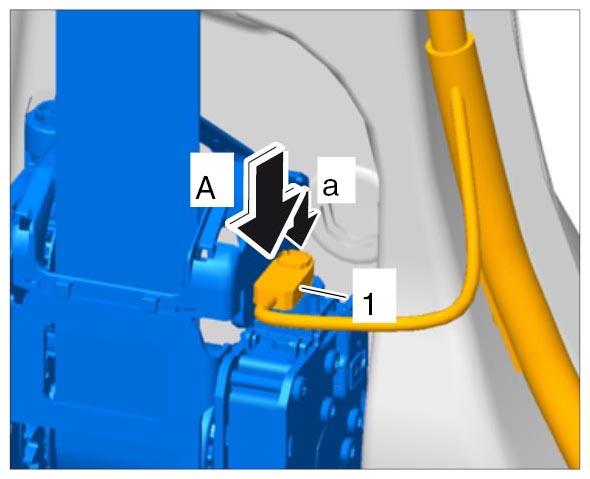

- Plug in electric plug connection -1-
(-A-
) and close the locking mechanism -a-
.
Information
Do not twist the three-point belt during installation!
Information
Once the fastening screw has been tightened, the belt lug must level out on its own in a vertical position or in the relevant support direction.

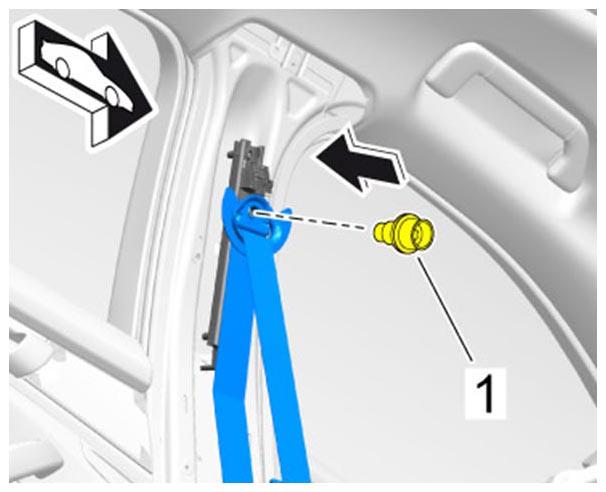

- Tighten fastening screw -1- on the belt lug at the bodyshell to → Tightening Torque: 50 Nm (37 ft. lb.) until secure.
