Installing Rear Three-Point Belt At The Center
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.
Information
Do not twist the three-point belt during installation!
Information
Once the fastening screw has been tightened, the belt lug must level out on its own in a vertical position or in the relevant support direction.
Information
When routing the electric lines, make sure that they are not routed through the belt-coiling area.

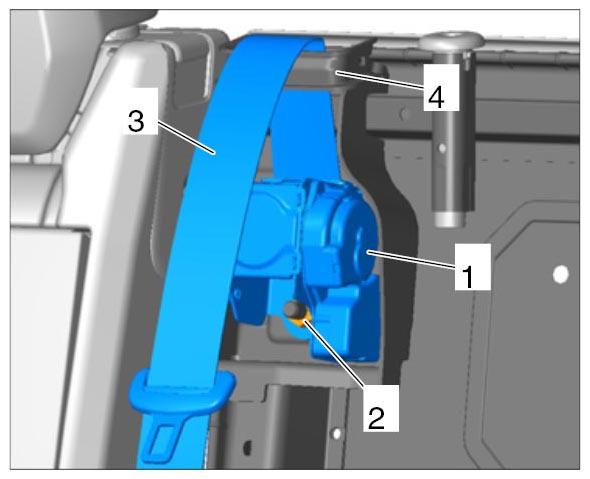

- Fit seat-belt pretensioner -1-
.
- 1.1. Feed the belt strap -3- through the guide -4- .
- 1.2. Position seat-belt pretensioner -1- .
- 1.3. Fit fastening nut -2- for the seat-belt pretensioner -1- and tighten to → Tightening Torque: 50 Nm (37 ft. lb.) until secure.
- 1.4. Check that the seat-belt pretensioner is seated correctly.

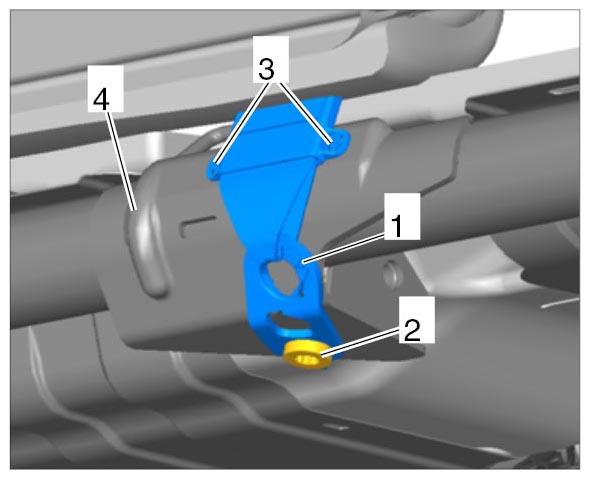

- Secure the seat belt -1-
at the bottom.
- 2.1. Fit fastening screw -2- for the seat belt -1- and tighten to → Tightening Torque: 50 Nm (37 ft. lb.) until secure.
- 2.2. Clip in fixing clips -3- for the seat belt on the seat frame -4- .
- 2.3. Check that the seat belt is routed correctly.
