Installing Front Three-Point Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install seat-belt pretensioner.
Information

Always replace the fastening screws on the three-point seat belt. The micro-self-locking screws must not be treated (e.g. greased) or loosened and then screwed on again.

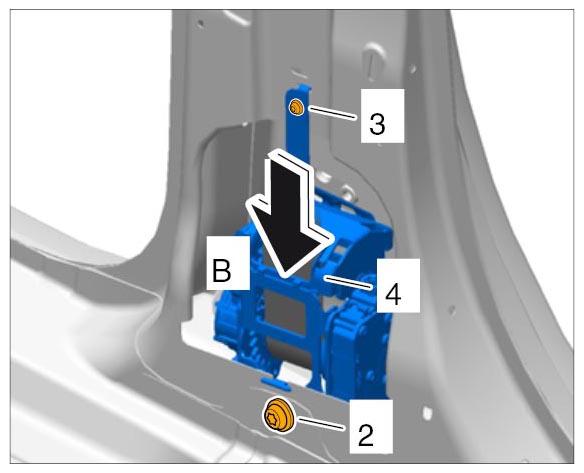

1. 1.1. Fit seat-belt pretensioner -4- (-B- ) and tighten the bottom fastening screw -2- to Tightening Torque 50 Nm (37 ft. lb.) until secure.

  Fig 1: Installing Seat-Belt Pretensioner
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Tighten the top fastening screw -3- to Tightening Torque 4.5 Nm (3 ft. lb.) until secure.
  Information

  When routing the electric lines, make sure that they are not routed through the belt-coiling area.

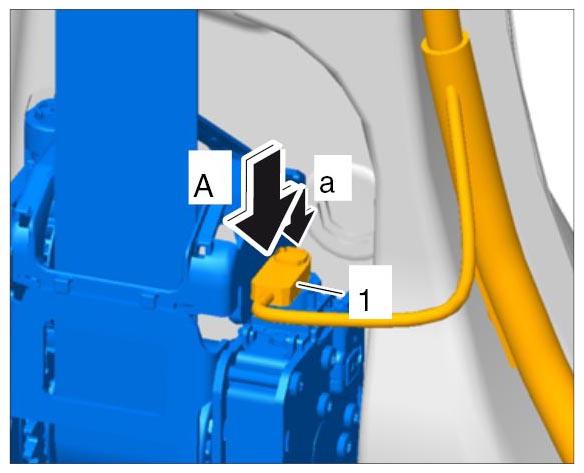

3. 1.3. Plug in electric plug connection -1- (-A- ) and close the lock -a- .

  Fig 2: Plugging In Connector On Seat-Belt Pretensioner
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information

Once the fastening screw has been tightened, the belt lug must level out on its own in a vertical position or in the relevant support direction.

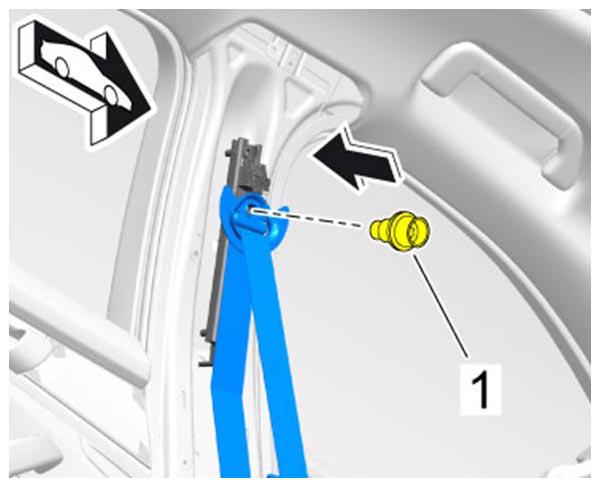

Tighten fastening screw -1- for the belt lug on the height adjuster to Tightening Torque 50 Nm (37 ft. lb.) until secure.

Fig 3: Installing Belt Lug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not twist the three-point belt during installation!

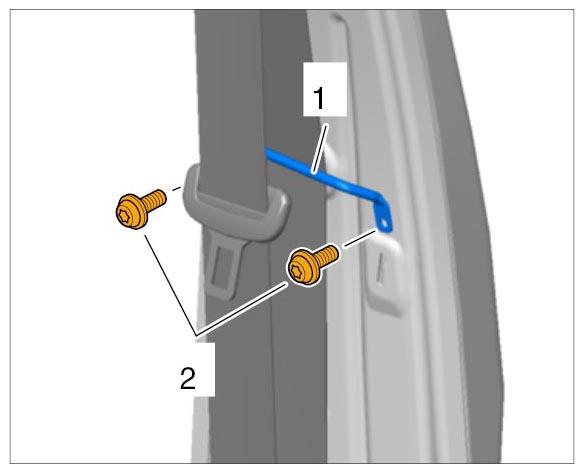

Tighten fastening screws -2- for the belt guide -1- at the B-pillar to Tightening Torque 4.5 Nm (3 ft. lb.) until secure.

Fig 4: Identifying Belt Guide And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not twist the three-point belt during installation!

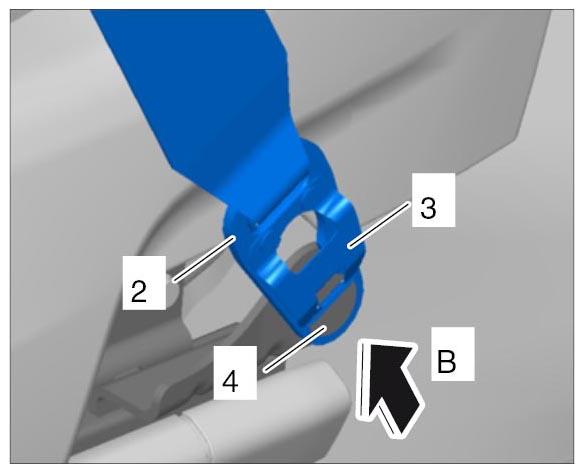

Install seat belt mount -2- on the seat.

Fig 5: Installing Seat Belt Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect handling of spring plate on seat belt mount
- The seat belt must be replaced.
→ Only bend the spring plate up as far as required to allow you to push the seat belt mount off the mounting pin.

→ The spring plate must be touching the mounting pin during installation with preload.
1. 4.1. Slide the seat belt mount -2- onto the pin -4- on the seat -B- until the spring plate -3- engages.

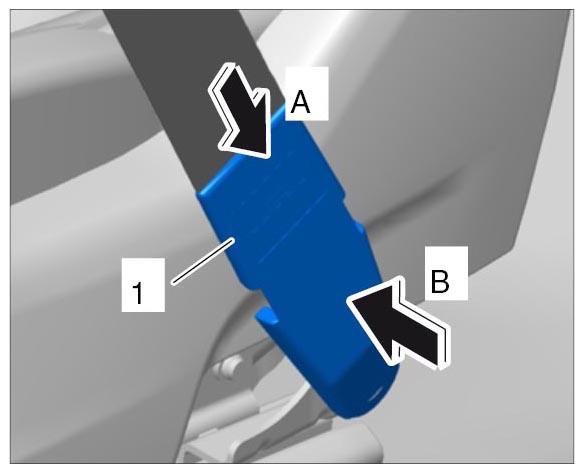

Slide the cover -1- over the seat belt mount -A- and clip it in -B- .

Fig 6: Clipping Cover On Seat Belt Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
