Removing Combination Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Combination sensor not calibrated or calibrated incorrectly

Unexpected vehicle handling
Combination sensor does not work
Malfunction in combination sensor

→ Calibrate the vehicle after installing or replacing the combination sensor using PIWIS Tester II 9818 .

→ Only perform calibration when the vehicle is positioned horizontally and the brake is not actuated.

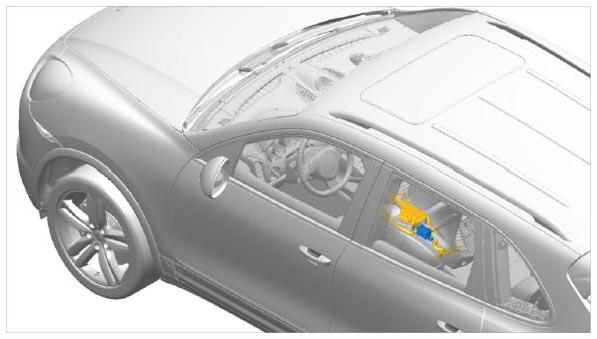

Fig 1: Identifying Combination Sensor Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

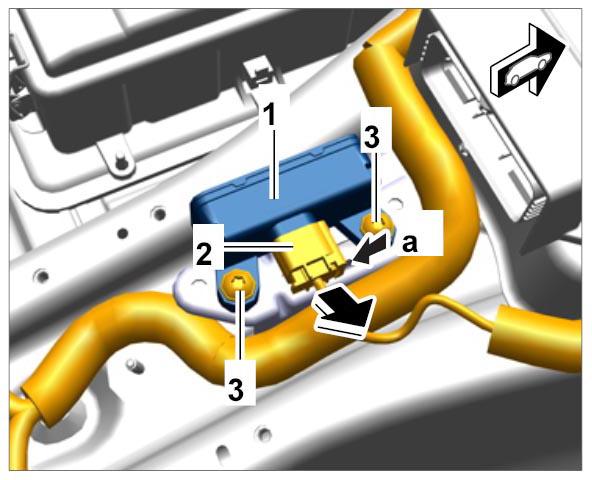

Release electric plug connection -2- for combination sensor -1- (-arrow a- ) and disconnect it -arrow- .
Unscrew fastening screws -3- for combination sensor -1- .

Fig 2: Removing Combination Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
