Installing Combination Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position combination sensor and center it.
  2. Tighten fastening screws -3-  . Tightening torque 8 Nm (6 ftlb.)
  3. Connect electric plug connection -2-  to the combination sensor -1-  (-arrow-  ) until it engages securely -arrow a-  .

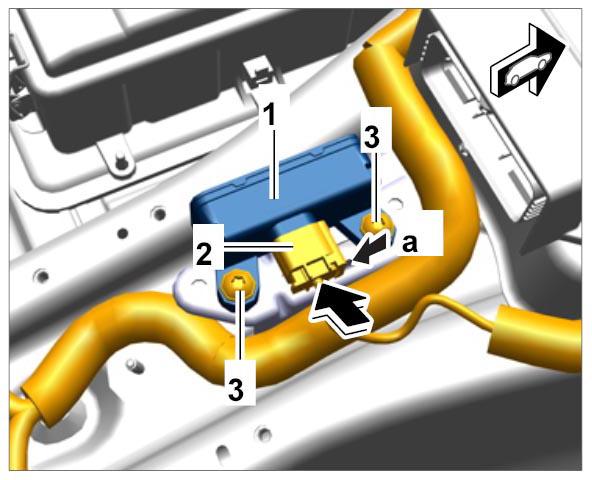

    4. Fig 1: Installing Combination Sensor
    G09937203Courtesy of PORSCHE CARS NORTH AMERICA, INC.
