Removing Distance Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The magnetic holder at the brake pedal must not be loosened or adjusted for removing and installing the distance sensor .
The magnetic holder must only be changed and adjusted when replacing the brake pedal .

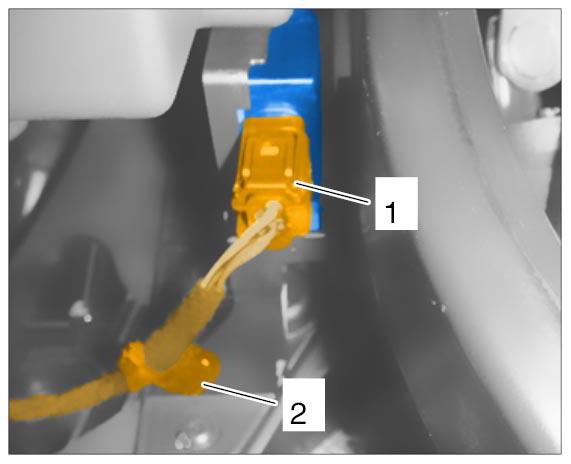

Release and unplug electric plug connection -1- on the distance sensor.
Disconnect electric line with retaining clip -2- at the distance sensor holder.

Fig 1: Identifying Distance Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

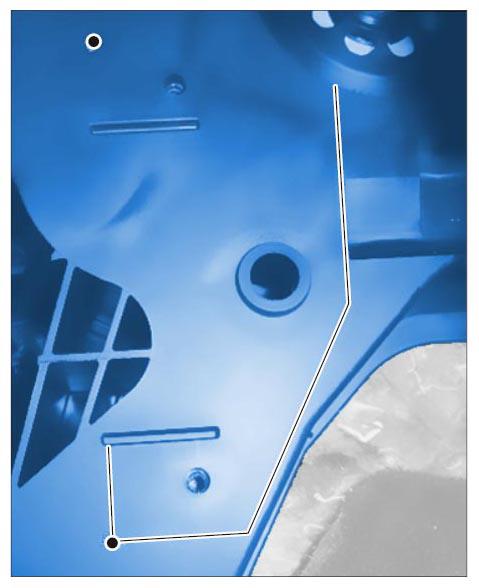

Mark the position of the distance sensor holder at the mounting saddle using a colored pen. This makes it easier to correctly position the distance sensor following installation.

Fig 2: Identifying Distance Sensor Holder Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen screws -2- on the distance sensor holder -1- and remove distance sensor holder.

Fig 3: Fastening Screws On Distance Sensor Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

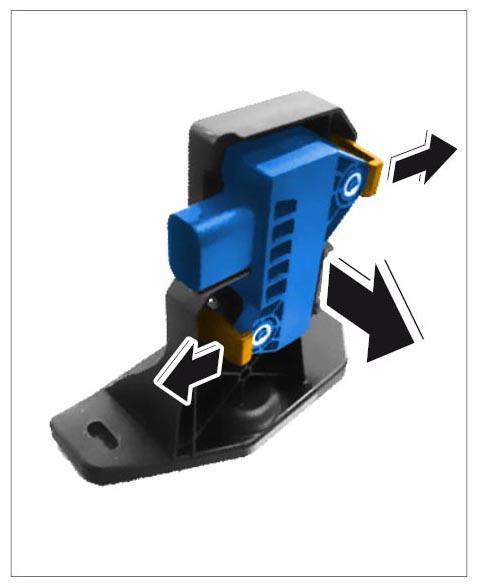

Unclip distance sensor from the holder.

Fig 4: Removing Distance Sensor From Holder
