Installing Distance Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The magnetic holder at the brake pedal must not be loosened or adjusted for removing and installing the distance sensor .
- The magnetic holder must only be changed and adjusted when replacing the brake pedal .
- Installation is performed in reverse order.

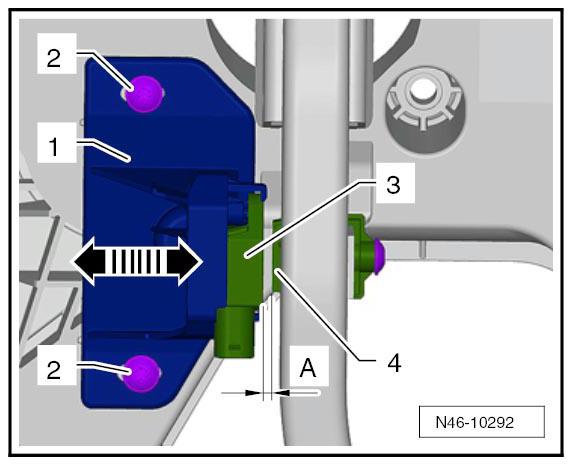

- Adjustment dimension -A- for distance between the distance sensor -3- and magnet -4- : → Adjustment value: +5 mm+/-0.5 mm
