Removing Rear Speed Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Rear Speed Sensor
G09937183Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release electric plug connection -1-  from the speed sensor -2-  (-a-  ) and disconnect it -A-  .
  2. Loosen fastening screw -3-  for the speed sensor -2-  .
  3. Pull the speed sensor -2-  out of the wheel carrier -4-  (-B-  ).

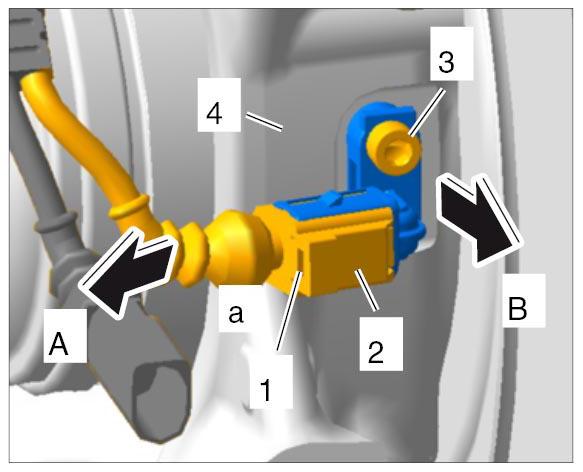

    4. Fig 2: Removing Rear Speed Sensor
    G09937184Courtesy of PORSCHE CARS NORTH AMERICA, INC.
