Installing Rear Speed Sensor
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The speed sensor must be inserted using Optitemp (Optitemp LG2, 25-ml spray can available under Part No. 000.043.204.21) .
- The bore for mounting the speed sensor must be free of dirt .
- Observe correct tightening torques .

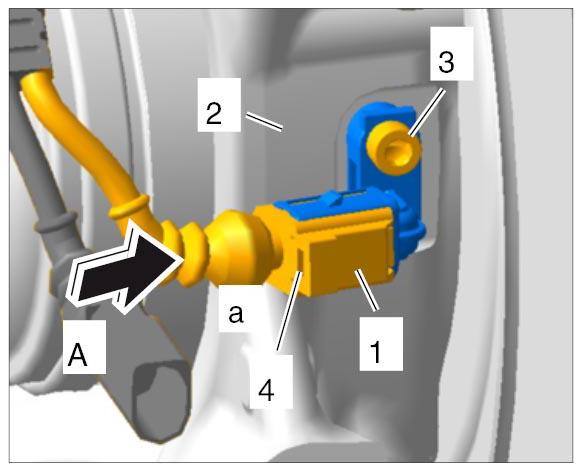

- Insert speed sensor -1- into the wheel carrier -2- .
- Fit fastening screw -3- for the speed sensor -1- . Tightening torque 8 Nm (6 ftlb.)
- Plug in electric plug connection -4- for the speed sensor -1- (-A- ) and lock it -a- .
