Removing Front Speed Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

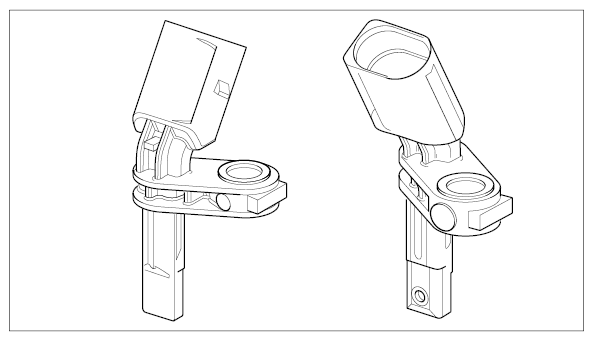

Fig 1: Identifying Front Speed Sensor
G09937180Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release electric plug connection -1-  from the speed sensor -a-  and pull it off -A-  .
  2. Loosen fastening screw -3-  for the speed sensor.
  3. Pull the speed sensor out of the wheel carrier -4-  (-B-  ).

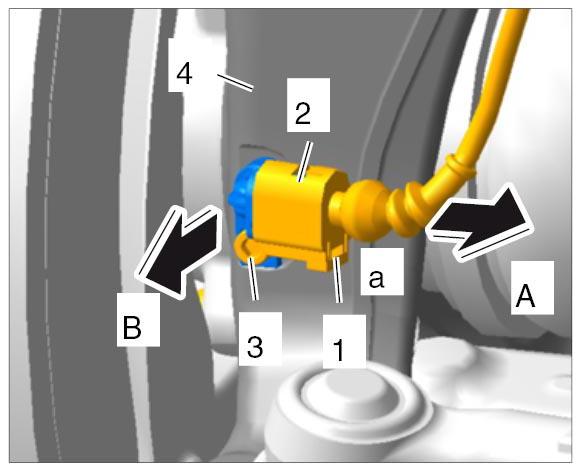

    4. Fig 2: Removing Front Speed Sensor
    G09937181Courtesy of PORSCHE CARS NORTH AMERICA, INC.
