Installing Front Speed Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The speed sensor must be inserted using Optitemp (Optitemp LG2, 25-ml spray can available under Part No. 000.043.204.21) .
The bore for mounting the speed sensor must be free of dirt .
Observe correct tightening torques .

Insert speed sensor -1- into the wheel carrier -2- .

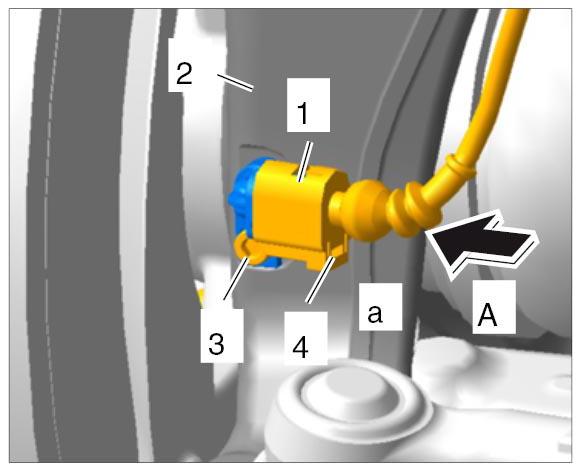

Fig 1: Fitting Front Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit fastening screw -3- for the speed sensor. → 4X00IN TIGHTENING TORQUES FOR ANTI-LOCK BRAKE SYSTEM (ABS)
Plug in electric plug connection -4- (-A- ) and lock it -a- .
