Removing Rear Cigarette Lighter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release electric plug connection -a-  and disconnect it -A-  .
    Fig 1: Disconnecting Cigarette Lighter Plug Socket Plug Connection
    G09943069Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press plug socket -1-  for cigarette lighter through in an outward direction -A-  .

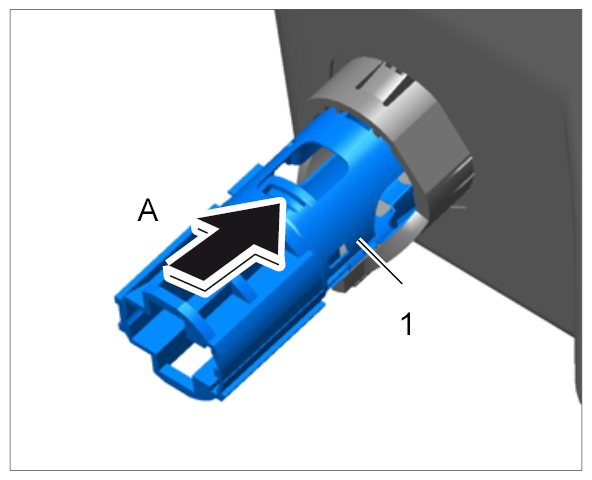

    Fig 2: Removing Plug Socket
    G09943070Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release the cover -2-  (-B-  ) and press it outwards -C-  .

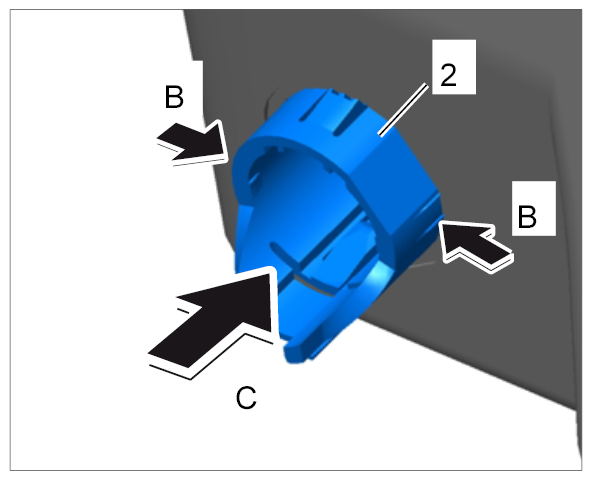

    Fig 3: Removing Cigarette Lighter Cover
    G09943071Courtesy of PORSCHE CARS NORTH AMERICA, INC.
