Removing Front Cigarette Lighter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull cupholder -1-  out of the center console -2-  .

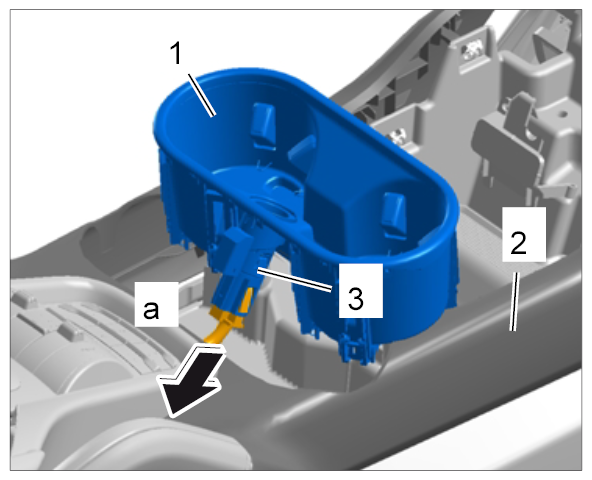

    Fig 1: Disconnecting Plug Connection For Cigarette Lighter
    G09943066Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove cupholder from the center console.
  3. Release plug connection for the cigarette lighter -3-  (-a-  ) and disconnect it -arrow-  .
  4. Remove cupholder.
  5. Press plug socket -1-  for cigarette lighter through in an outward direction -A-  .

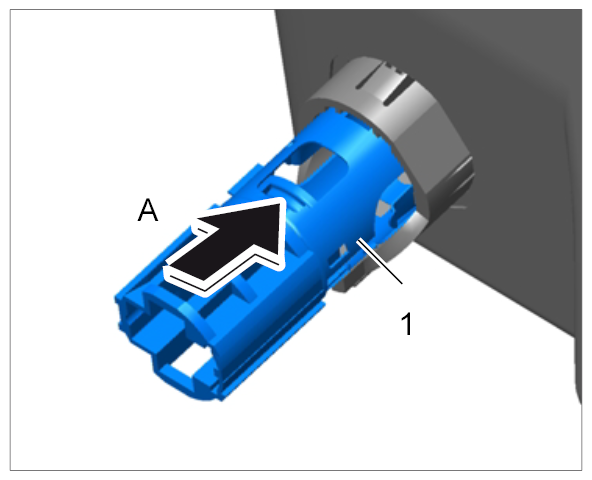

    Fig 2: Removing Plug Socket For Cigarette Lighter
    G09943067Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Release the cover -2-  (-B-  ) and press it outwards -C-  .

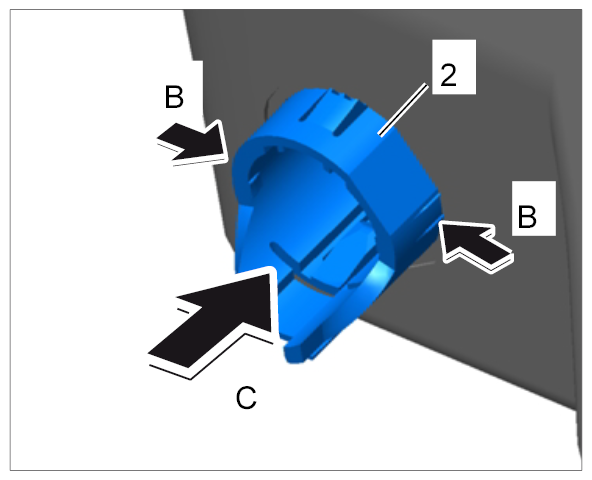

    Fig 3: Removing Cigarette Lighter Cover
    G09943068Courtesy of PORSCHE CARS NORTH AMERICA, INC.
