Removing Plug Socket In Rear Centre Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release electric plug connection -a-  and disconnect it -A-  .

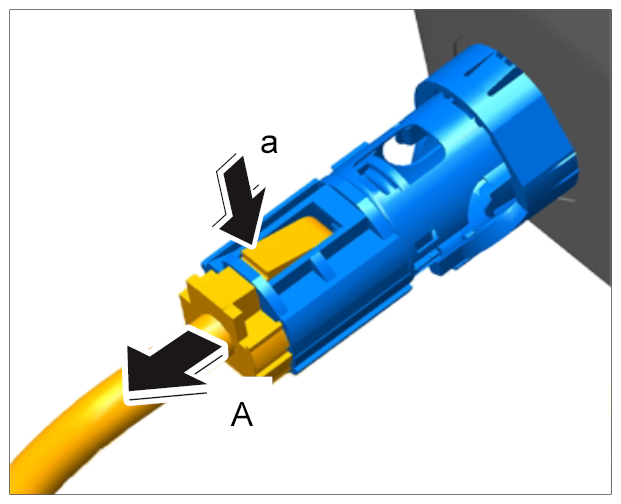

    Fig 1: Disconnecting Plug Connection On Plug Socket
    G09943060Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press the plug socket -1-  outwards -A-  .

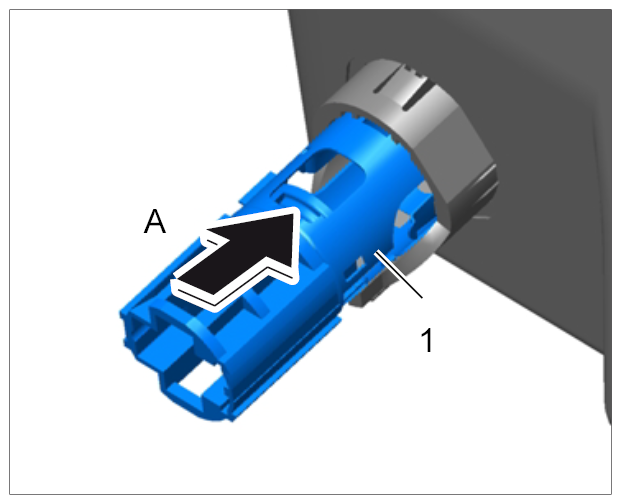

    Fig 2: Removing Plug Socket
    G09943061Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release the cover -2-  (-B-  ) and press it outwards -C-  .

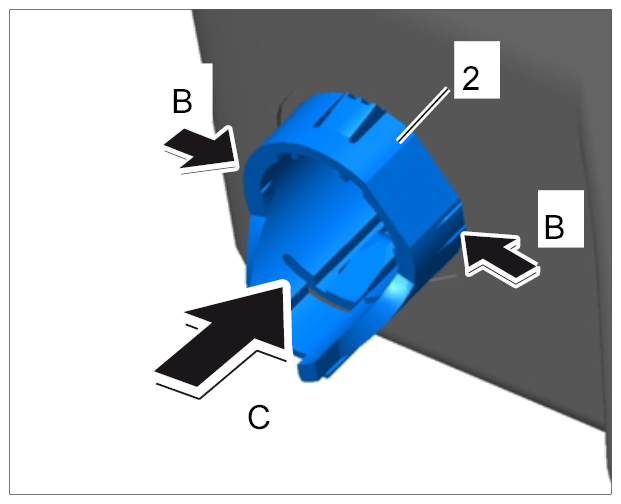

    Fig 3: Removing Plug Socket Cover
    G09943062Courtesy of PORSCHE CARS NORTH AMERICA, INC.
