Removing Plug Socket In Luggage Compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connection.

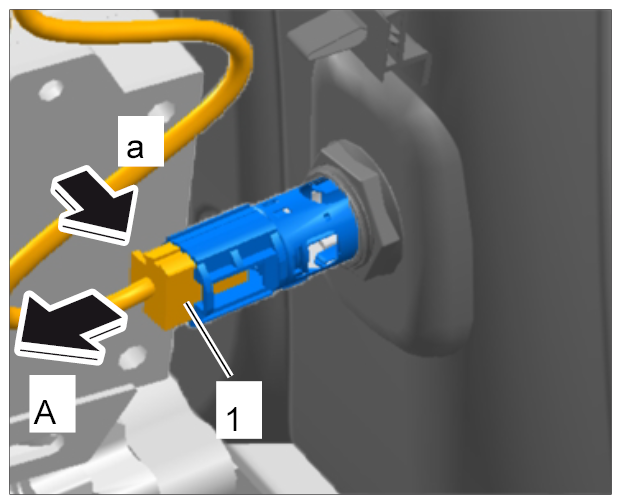

    Fig 1: Disconnecting Luggage Compartment Plug Socket Plug Connection
    G09943063Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew plastic nut behind the trim panel.

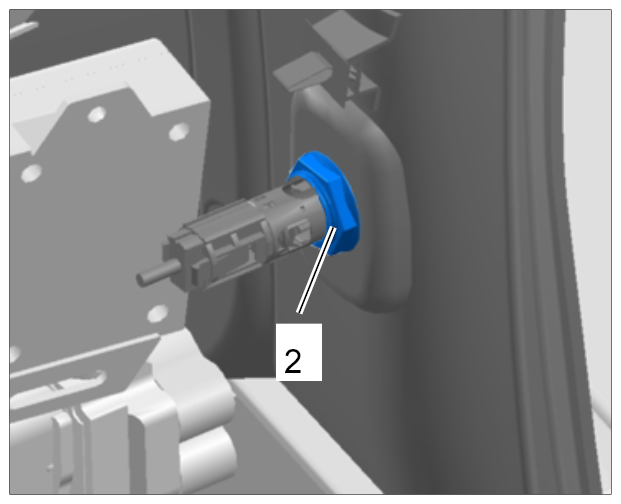

    Fig 2: Identifying Luggage Compartment Plug Socket Plastic Nut
    G09943064Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Open the cover of the plug socket -3-  (-A-  ) and press the plug socket -4-  out -B-  .

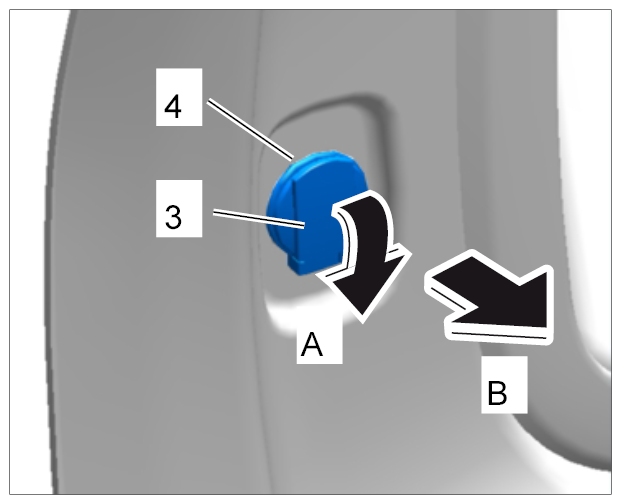

    Fig 3: Removing Plug Socket In Luggage Compartment
    G09943065Courtesy of PORSCHE CARS NORTH AMERICA, INC.
