Removing Plug Socket In Front Centre Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

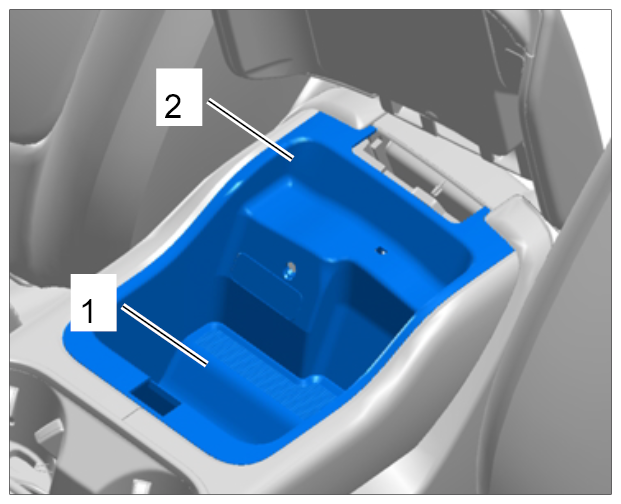

Remove rubber mat -1- from storage bin -2- .

Fig 1: Identifying Centre Console Storage Bin Rubber Mat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

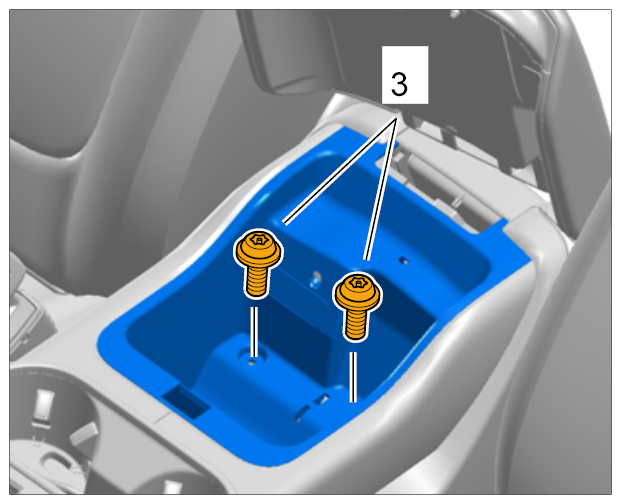

Unscrew two fastening screws -3- .

Fig 2: Removing Storage Bin Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

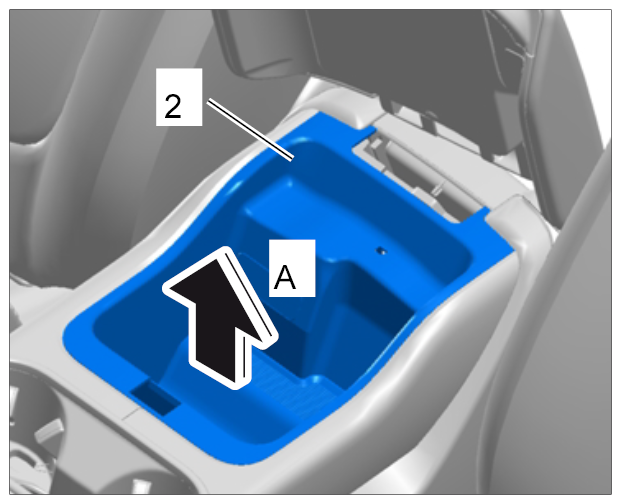

Lift up storage bin -2- (-A- ).

Fig 3: Lifting Storage Bin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

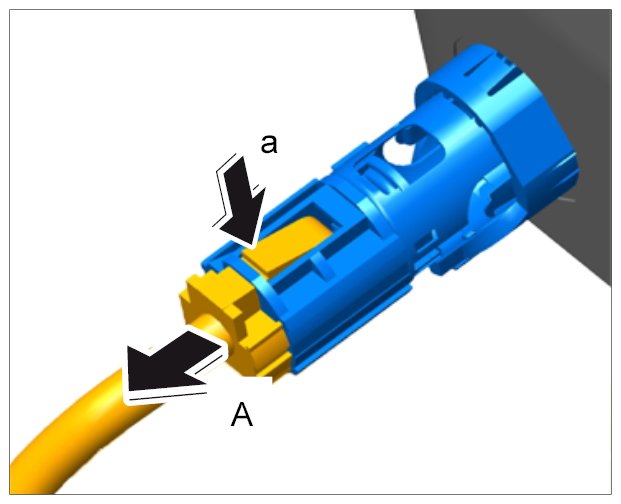

Release electric plug connection -a- and disconnect it -A- .

Fig 4: Disconnecting Plug Connection On Plug Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

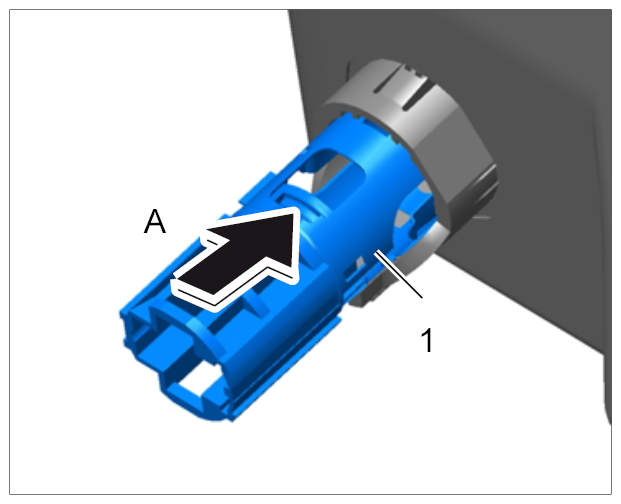

Open the cover of the plug socket and press the plug socket -1- through in an outward direction -A- .

Fig 5: Removing Plug Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

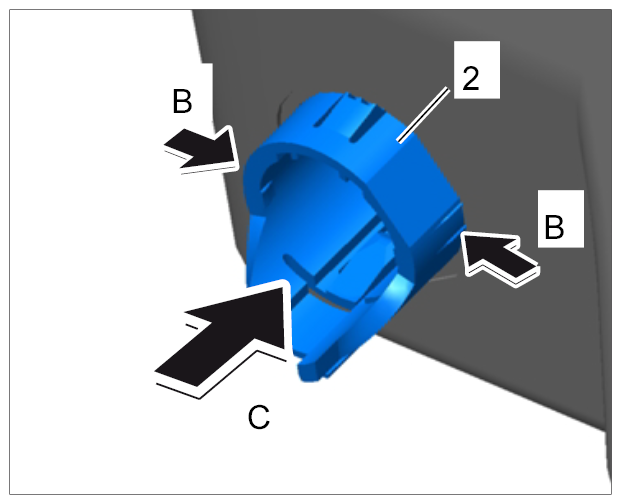

Release the cover -2- (-B- ) and press it outwards -C- .

Fig 6: Removing Plug Socket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
