Removing Horn

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

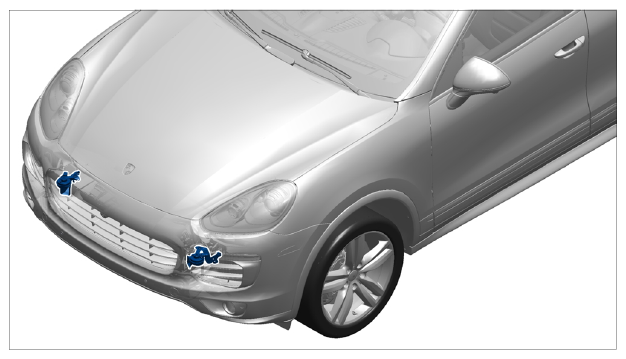

Fig 1: Identifying Horns Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Unclip and remove charge air line -1- from the charge-air cooler -arrow- .

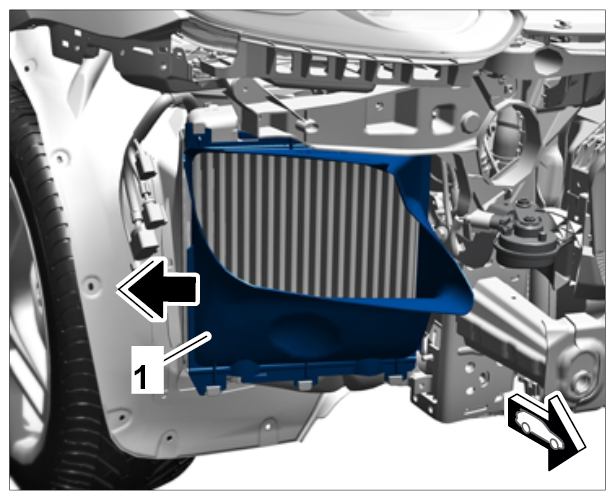

Fig 2: Removing Charge Air Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -2- and disconnect it from the horn -arrow A- .

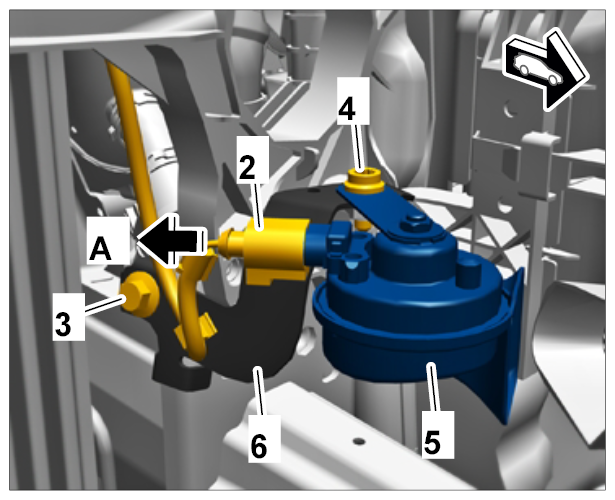

Fig 3: Removing Horn
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip electric wire harness from the holder -6- .
Unscrew fastening screw -3- and remove horn -5- with holder -6- .
Unscrew fastening screw -4- and remove horn -5- from the holder -6- .
