Installing Horn

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure that the plug connections and lines are not touching the horns or the brackets.

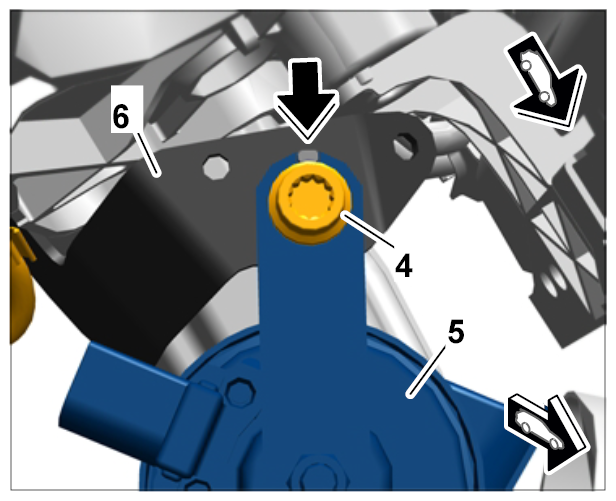

Position horn -5- in such a way that the cut-out encloses the raised part -arrow- of the holder -6- .

Fig 1: Positioning Horn
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

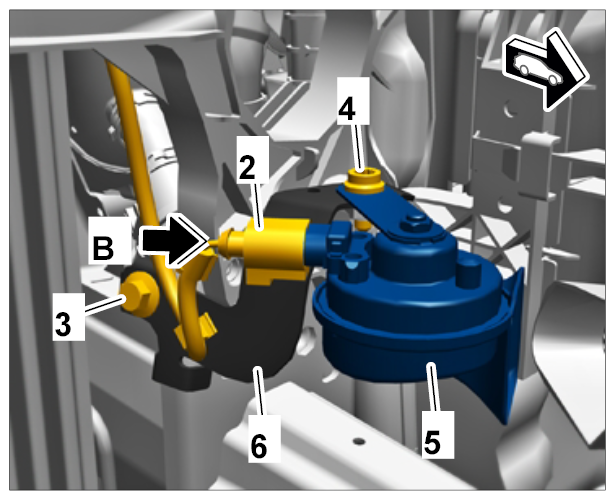

Tighten fastening screw -4- .
Install holder -6- with horn -5- .
Tighten fastening screw -3- . Tightening torque 20 Nm (15 ftlb.)
Connect electric plug connection -2- until it engages securely -arrow B- .
Clip in electric wire harness at the holder -6- .

Fig 2: Installing Horn
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

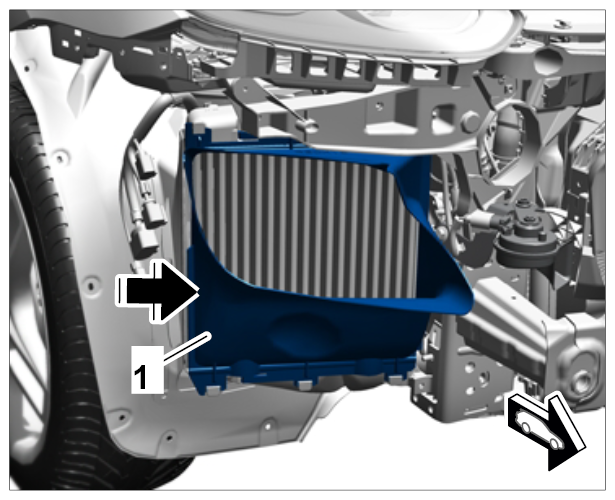

Install charge air line -1- on the charge-air cooler and clip it in -arrow- .

Fig 3: Installing Charge Air Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
