Removing Instrument Cluster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

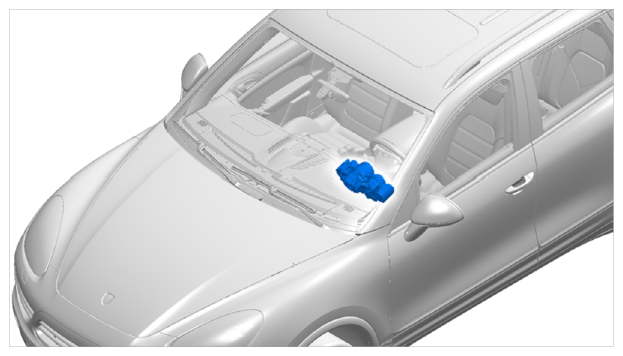

Fig 1: Identifying Instrument Cluster Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -1- .

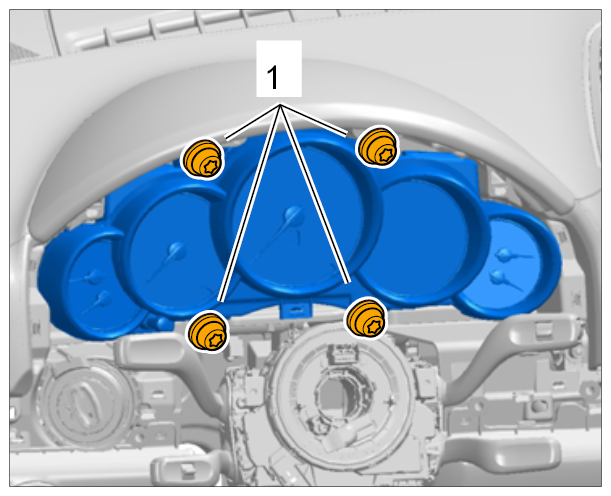

Fig 2: Identifying Instrument Cluster Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -a- and disconnect it -A- .

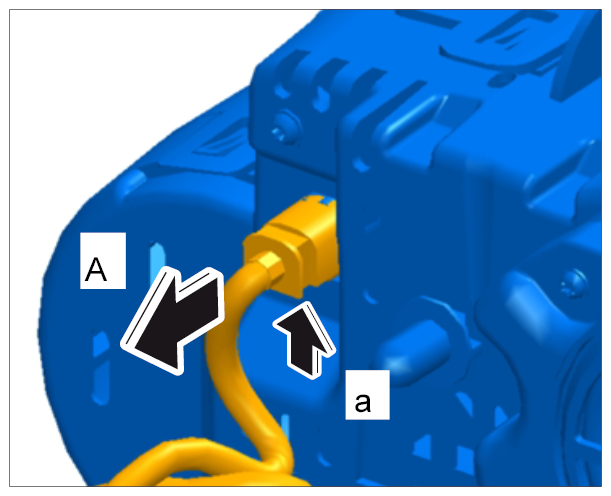

Fig 3: Releasing Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release clip -1- on electric plug connection -a- and bend it over -A- , then disconnect connector -B- .

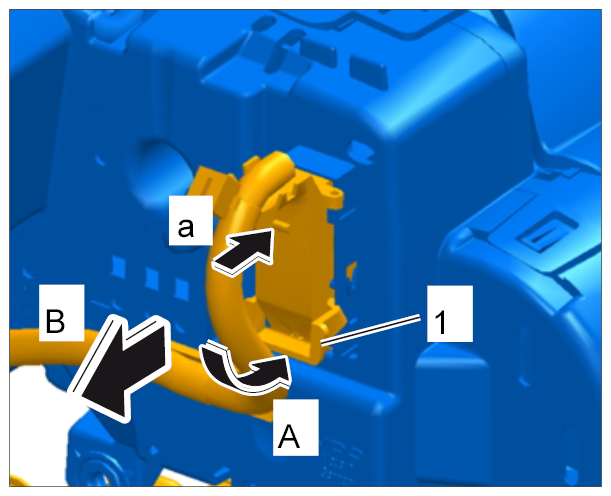

Fig 4: Removing Instrument Cluster Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
