Installing Instrument Cluster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The instrument cluster is installed in reverse order to removal.
  2. Tighten fastening screws -1-  . Tightening torque 1.5 Nm (1 ftlb.)

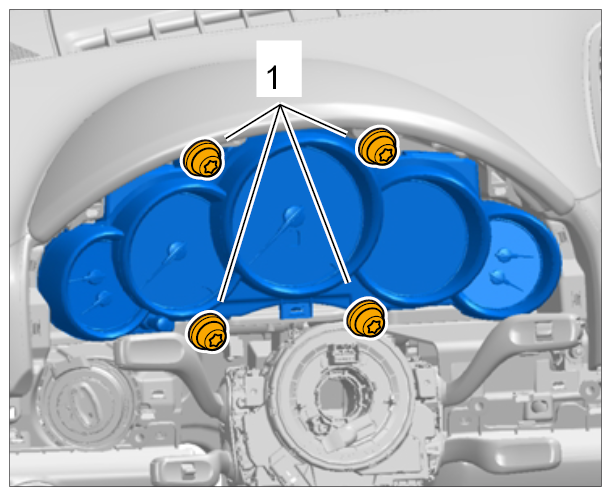

    Fig 1: Identifying Instrument Cluster Screws
    G09943033Courtesy of PORSCHE CARS NORTH AMERICA, INC.
