Removing Compass

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

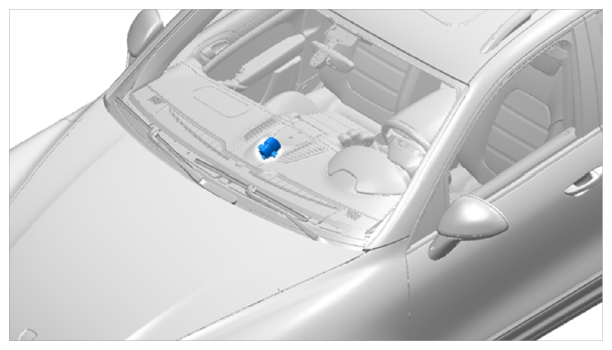

Fig 1: Identifying Compass Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -1- and remove compass from the trim panel.

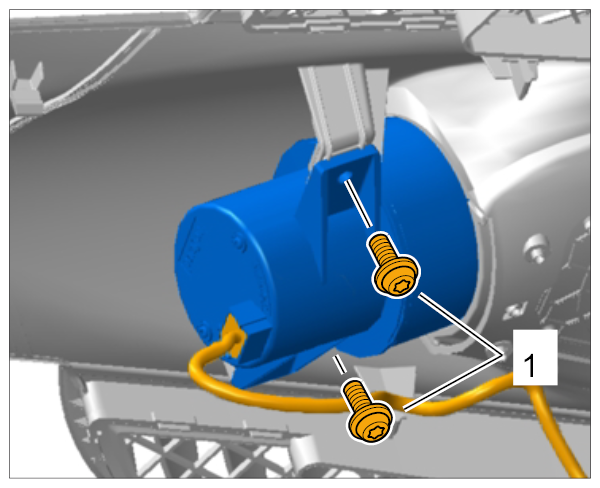

Fig 2: Identifying Compass Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection from compass.
