Removing Dashboard Inset At The Bottom

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

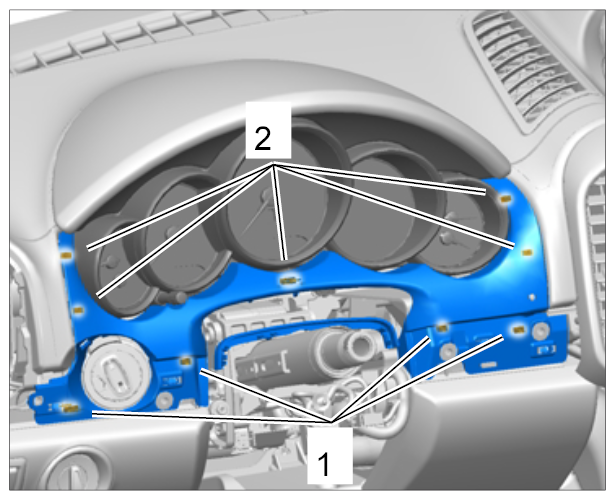

Unclip locks -1- from the dashboard inset at the bottom.
Unclip locks -2- from right to left.

Fig 1: Identifying Dashboard Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

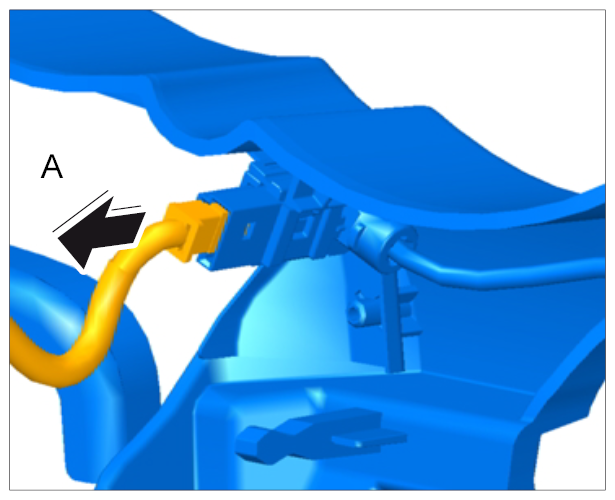

Release and disconnect electric plug connection on ignition starter switch light -A- .

Fig 2: Removing Connector From Ignition Starter Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

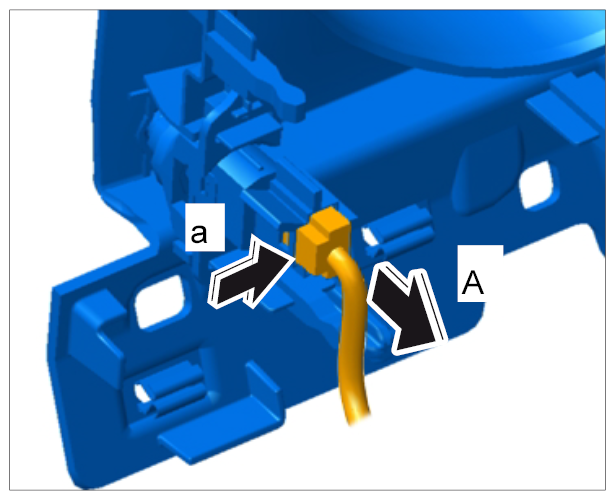

Release electric plug connection on temperature sensor -a- and disconnect it -A- .

Fig 3: Removing Temperature Sensor Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
