Additional Handset For Telephone >> Replacing Battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure not to scrape the cover with the screwdriver.

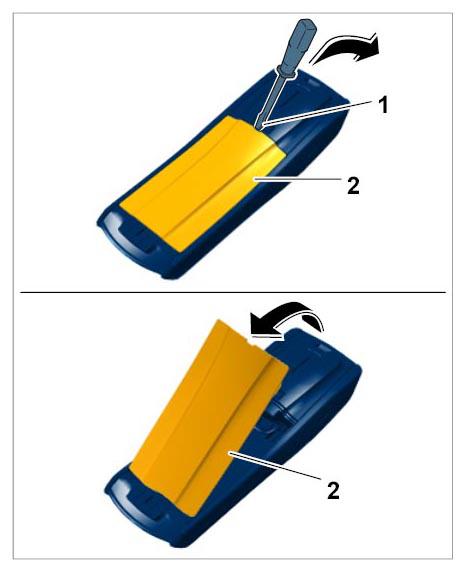

Insert a small screwdriver into the opening -1- on the back of the additional handset and carefully prise off the cover -2- .

Fig 1: Opening Battery Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

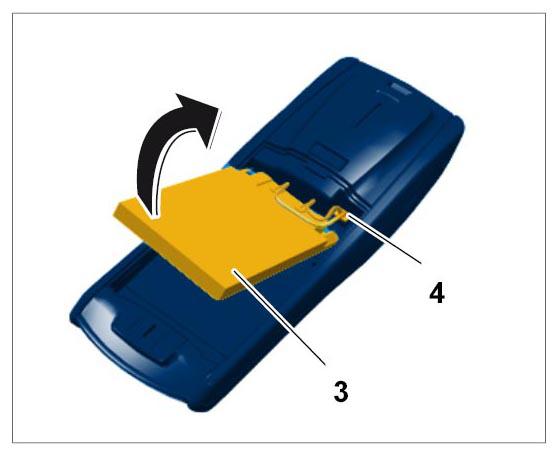

Lift up battery -3- and disconnect electric connector -4- on the additional handset.

Fig 2: Removing Battery
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unpack new battery.

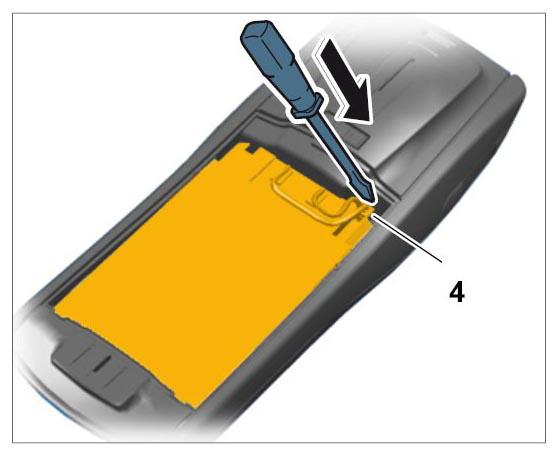

Plug in electric connector -4- on the additional handset and carefully push the plug connection on as far as it will go using a small screwdriver if necessary.

Fig 3: Installing Electric Connector On Handset
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the battery into the additional handset and close the cover until it engages securely.
