Removing Control Unit For Telephone Module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully open the cover on the PCM display and operator control unit using a screwdriver.

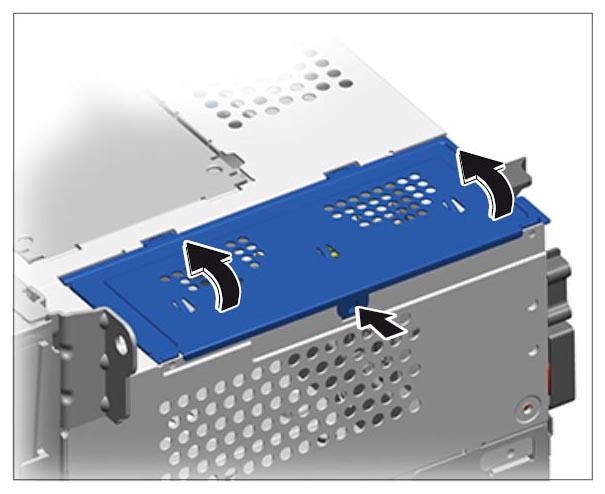

    Fig 1: Opening Control Unit Cover
    G09941859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  and pull telephone control unit up and out.

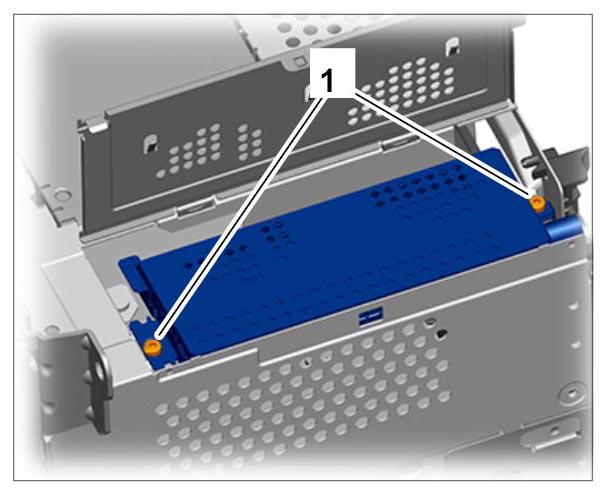

    Fig 2: Identifying Telephone Control Unit Screws
    G09941860Courtesy of PORSCHE CARS NORTH AMERICA, INC.
