Removing Buzzer For Rear Parking Assistant

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connection -1-  .

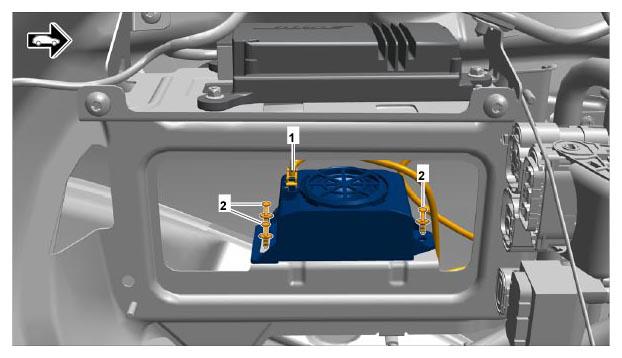

    Fig 1: Identifying Buzzer
    G09941842Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release expansion rivets -2-  and pull them out.

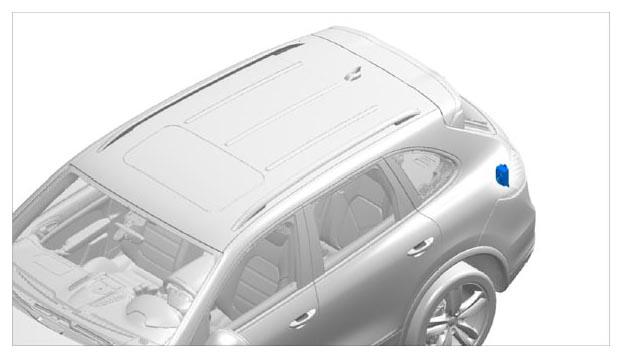

    Fig 2: Identifying Rear Parking Assistant Buzzer Position
    G09941843Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release electric plug connection -1-  (-a-  ) and disconnect it -A-  .

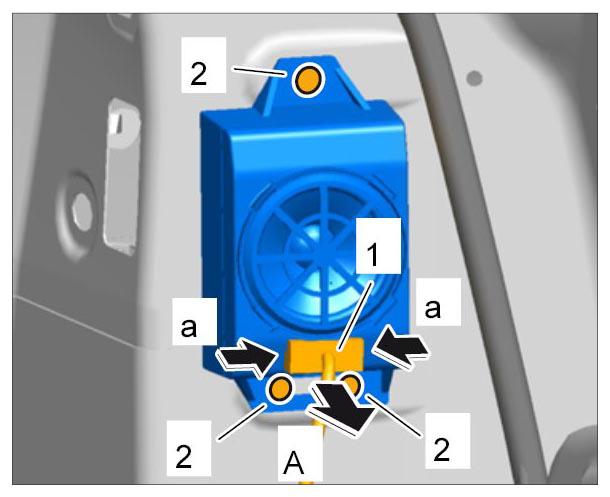

    Fig 3: Removing Buzzer For Rear Parking Assistant
    G09941844Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release expansion rivets -2-  and pull them out.
