Removing Sensor For Park Assist

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If one or more sensors must be replaced or repainted:

  1. Pull off connector on sensor for ParkAssist.
    1. 1.1. Pull locking lugs apart -arrows A-  and remove sensor for ParkAssist -1-  (-arrow B-  ).
    2. 1.2. Release connector -2-  (-arrow C-  ) and pull it off sensor for ParkAssist -1-  (-arrow D-  ).

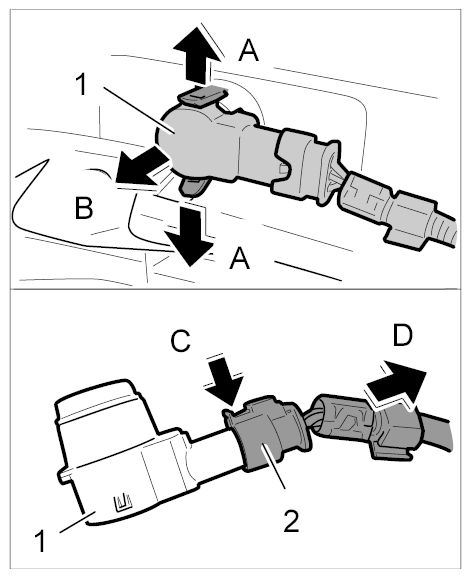

      Fig 1: Pulling Parkassist Sensor Connector
      G09941837Courtesy of PORSCHE CARS NORTH AMERICA, INC.
