Installing Sensor For Park Assist

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in connector on sensor for ParkAssist.
    1. 1.1. Plug in connector -2-  on sensor for ParkAssist -1-  (-arrow A-  ) until the connector -2-  engages securely.
    2. 1.2. Press sensor for ParkAssist -1-  into the mounting in the rear apron -arrow B-  until the locking lugs engage securely.

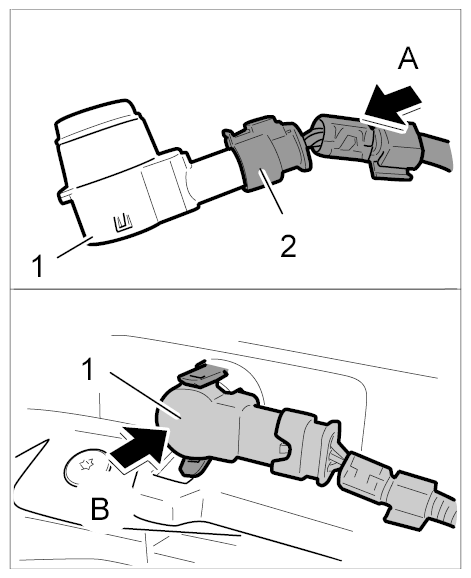

      Fig 1: Locating Parkassist Sensor Connector
      G09941838Courtesy of PORSCHE CARS NORTH AMERICA, INC.
