Removing Park Assist Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ParkAssist sensor -1-  .
    1. 1.1. Disengage locking mechanisms -2-  and take ParkAssist sensor -1-  out of the holder.
    2. 1.2. Disengage locking mechanism for electric plug connection by moving it to the side -3-  .
    3. 1.3. Press locking mechanism -4-  and disconnect electric plug connection at the ParkAssist sensor -1-  .

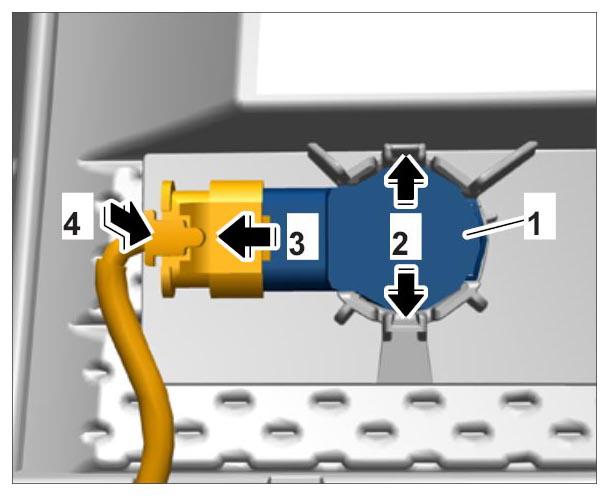

      Fig 1: Removing Parkassist Sensor
      G09941841Courtesy of PORSCHE CARS NORTH AMERICA, INC.
