WM 917519 Removing And Installing PARKASSIST Sensor (Cayenne, Cayenne GTS, Cayenne Turbo S, Cayenne S, Cayenne S Hybrid, Cayenne Turbo, Cayenne S Diesel, Cayenne (3.0)): Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

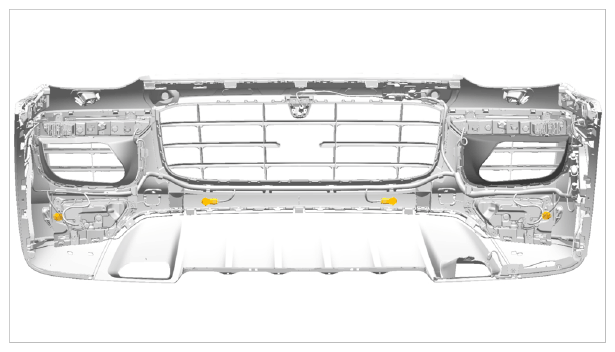

Fig 1: Identifying Front Parkassist Sensors Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

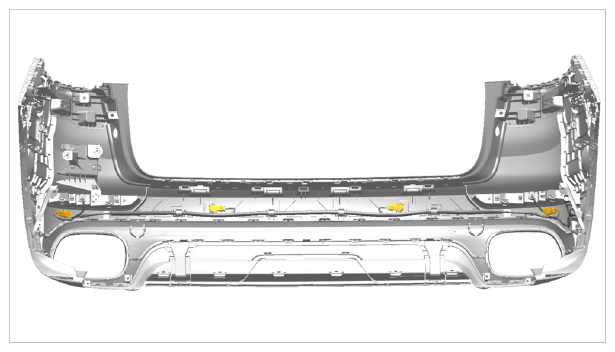

Fig 2: Identifying Rear Parkassist Sensors Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
