Adapting Calibration Mats

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following tools are required: Calibration system WE 1606

The calibration system must be adapted in order to be able to use it for the Cayenne and Macan.

The adaptation must only be carried out once and does not have to be reset.

Adaptation also ensures that the system can be used for the Panamera.

Adapt front and rear calibration mats (VAS 6905/2) from the calibration system WE 1606 as follows:
1. 1.1. Spread out front and rear calibration mats (VAS 6905/2) on a clean, flat surface.
2. 1.2. At the outer left and right respectively, tape the transverse lines using 38 - 50 mm wide adhesive strips -1- running along the longitudinal axis of the vehicle → Taping front and rear calibration mats (VAS 6905/2) .
  Adhesive strips must be the same color as the calibration mats so as not to affect the contrast .

  Adhesive strips must not change the width of transverse and longitudinal lines .

  The tape must be affixed in the same way at the front and rear.

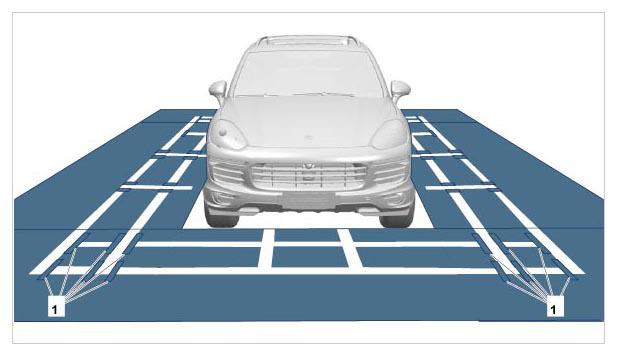

  Fig 1: Identifying Front And Rear Calibration Mats (VAS 6905/2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adapt calibration mats for left and right side panel (VAS 6905/1) from the calibration system WE 1606 as follows:

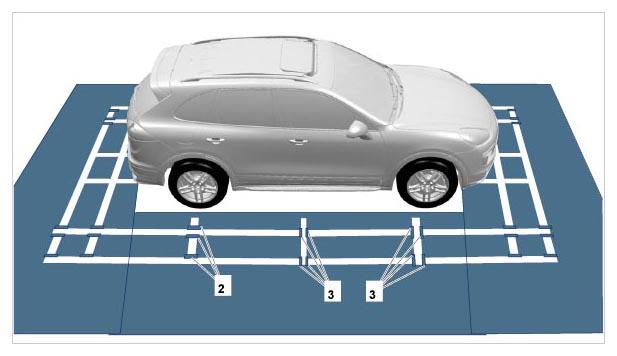

Fig 2: Identifying Calibration Mats For Left And Right Side Panel (VAS 6905/1)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Spread out calibration mats for left and right side panel (VAS 6905/1) on a clean, level surface.
2. 2.2. Tape the respective rear transverse line using 38 - 50 mm wide adhesive strips -2- running along the longitudinal axis of the vehicle.
  Adhesive strips must be the same color as the calibration mats so as not to affect the contrast .

  Adhesive strips must not change the width of transverse and longitudinal lines .

  The tape must be affixed on the left side as a mirror image of the right side.
3. 2.3. Tape the front transverse lines using 38 - 50 mm wide adhesive strips -3- running transversely with respect to the longitudinal axis of the vehicle so that they are distinguished from the longitudinal lines.
  Adhesive strips must be the same color as the calibration mats so as not to affect the contrast .

  Adhesive strips must not change the width of transverse and longitudinal lines .

  The tape must be affixed on the left side as a mirror image of the right side.
