Removing Surround View Camera Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

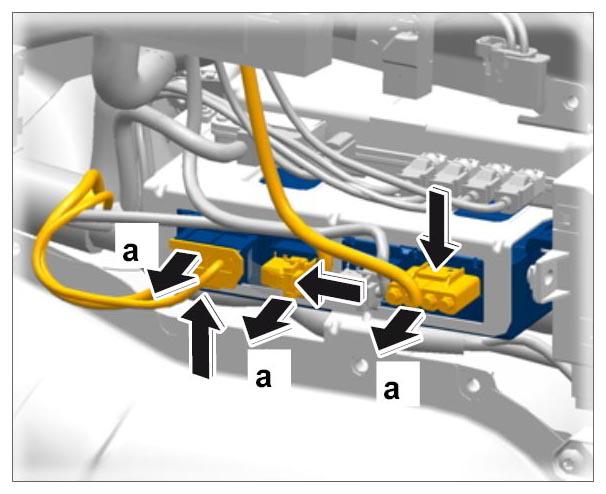

  1. Release electric plug connections from TV tuner -arrow-  and disconnect them -arrow a-  .
    Fig 1: Disconnecting Electric Plug Connections
    G09941825Courtesy of PORSCHE CARS NORTH AMERICA, INC.

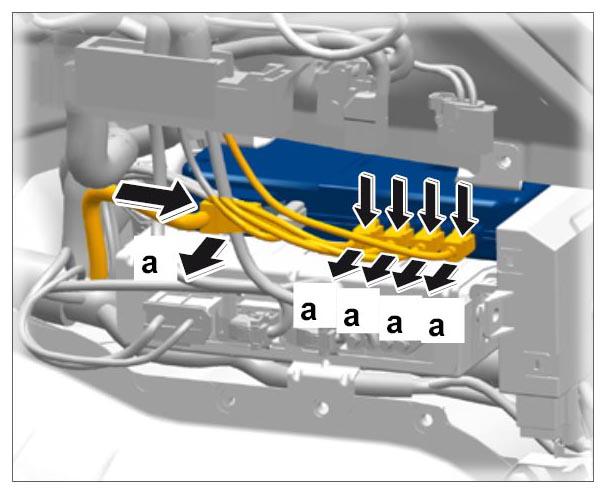

  2. Release electric plug connections -arrow-  and disconnect them -arrow a-  .
    Fig 2: Releasing Electric Plug Connections
    G09941826Courtesy of PORSCHE CARS NORTH AMERICA, INC.

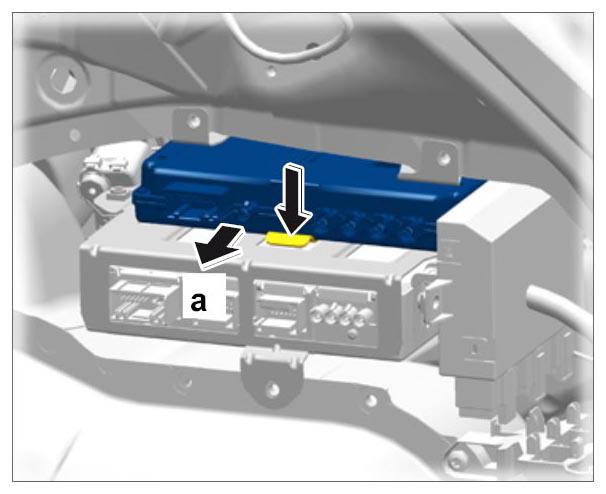

  3. Release locking lug -arrow-  and pull surround view camera control unit out of the holder -arrow a-  .
    Fig 3: Pulling Control Unit
    G09941827Courtesy of PORSCHE CARS NORTH AMERICA, INC.
