Removing Lane Change Assist Display

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Lane Change Assist display.
    1. 1.1. Press the display out of the housing from the inside -A-  .
    2. 1.2. Release and disconnect electric plug connection.

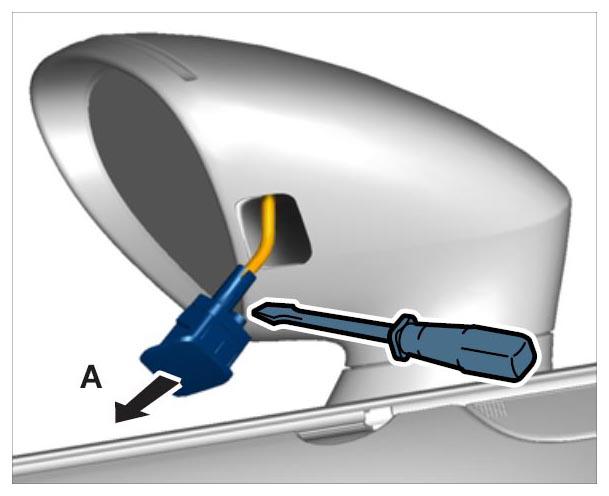

      Fig 1: Removing Lane Change Assist
      G09941824Courtesy of PORSCHE CARS NORTH AMERICA, INC.
