Preliminary Work

Information

The calibration process sends out radar beams, which the Doppler generator reflects. This simulates a vehicle.

A certain number of radar beams are expected in a defined time due to the defined position of the Doppler generator.

Deviations indicate that the control units are not at the correct installation position.

These deviations are displayed on the Porsche System Tester.

Information

The following tools are required for calibration:

• Calibration plates and wheel center mountings: Calibration unit VAS 6350 WE 1368  .
• Doppler generator: Calibration unit for Lane Change Assist VAS 6350/4 WE 1375
• Spacing laser: Spacing laser VAS 6350/2 WE 1369

Information

The following conditions must be observed in order to perform calibration:

• Calibration must only be performed on level ground  .
• The vehicle must be empty  .
• Wheels must be positioned straight ahead  .
• Vehicle doors must be closed  .
• Tires must have the specified air pressure  .
• On vehicles with air suspension, the chassis must be set to Normal Level and suspension levelling (air suspension) must be completed  .
• The retractable trailer hitch must be retracted  .
• The engine must not be running during calibration  .
• Check that there is adequate space behind the vehicle and that there are no metal objects/obstacles within 5 meters of the rear of the vehicle  .
• Make sure that no objects are moved or no-one moves behind the vehicle during calibration  .
• There must be no heavy soiling in the sensor area on the rear apron  .
• There must be no stickers in the sensor area on the rear apron  .
• The calibration plates, wheel center mountings and the Doppler generators must be fitted, centered/aligned in accordance with the operating instructions  .

Workshop conditions

• The system must only be calibrated in a suitable area of the workshop  .
• This area of the workshop must be sheltered from all environmental influences, such as rain, snow and swirling dust  .
• The workshop must be at room temperature  .

1. Park the vehicle on a level surface and set up the calibration unit VAS 6350 WE 1368  behind the vehicle.

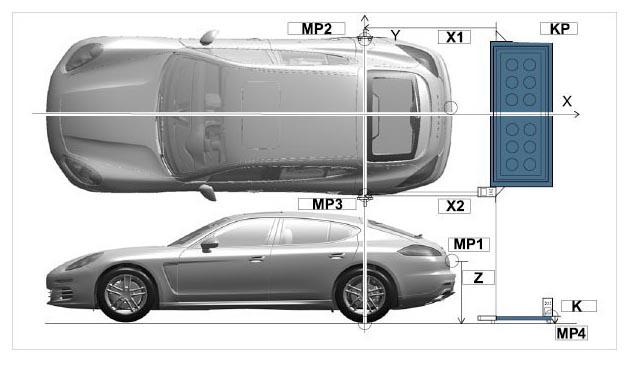

   MP 1 to 4  - Measuring points

   X1  - Distance from calibration board to right reflector

   X2  - Distance from calibration board to left reflector

   Z  - Height of camera from floor

   K  - Calibration board height

   Fig 1: Overview Of Vehicle (Panamera)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

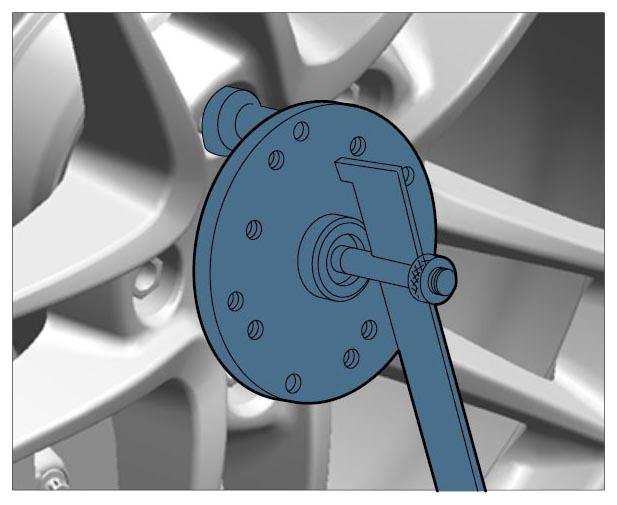

2. Fit wheel center mountings and reflectors on the vehicle. The reflectors must be hanging freely.
   Fig 2: Fitting Reflectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

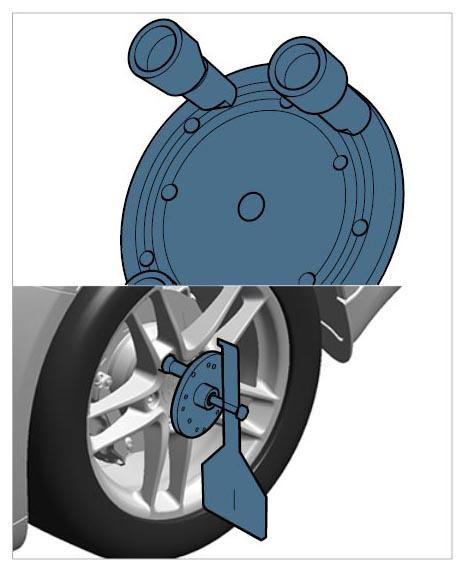

   Fig 3: Installing Wheel Centre Mountings

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Align the work surface with the center of the vehicle and adjust the line laser to suit the calibration board.
