Removing Control Unit For Lane Change Assist

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For trouble-free operation, Lane Change Assist must be calibrated after the following work is carried out on the vehicle:

When one or both Lane Change Assist control units are replaced .
When the installation position of one or both Lane Change Assist control units is changed .
When body repairs are carried out on the rear of the vehicle .
When the rear bumper is removed or moved out of position .

Information

Lane Change Assist has two control units:

The master control unit on the left and
the slave control unit on the right .

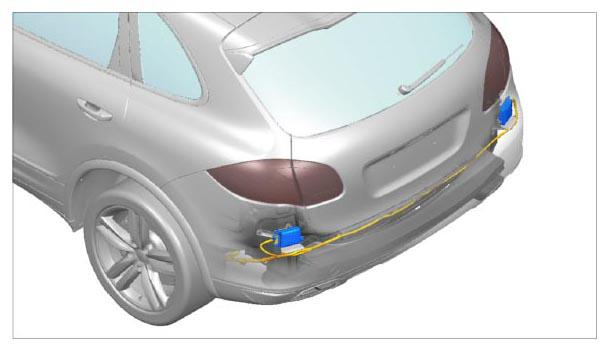

Fig 1: Identifying Lane Change Assist Control Units Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove remote control (hand-held transmitter).
Unscrew the three fastening screws -1- .

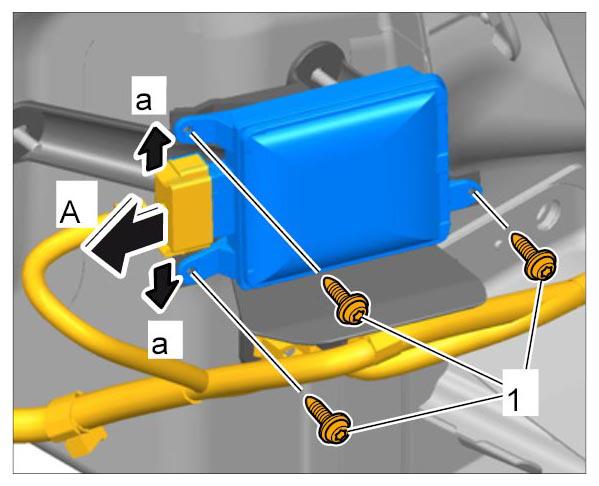

Fig 2: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the retaining clips for the electric connector -a- and disconnect connector -A- from the control unit.
