Installing Control Unit For Lane Change Assist

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in electric connector on the control unit -A-  until it engages securely.
  2. Position the control unit on the holder -B-  and secure it with the three fastening screws -1-  . → Tightening torque: 4 Nm (3 ftlb.)

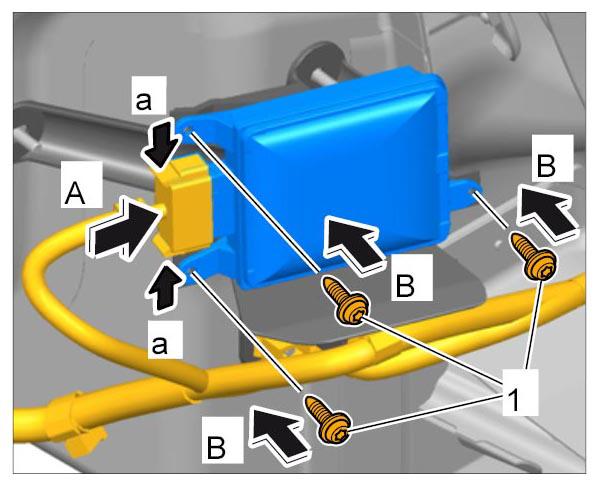

    3. Fig 1: Installing Control Unit
    G09941803Courtesy of PORSCHE CARS NORTH AMERICA, INC.
