Removing Front Camera

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connection -1-  on the front camera -a-  .
  2. Unscrew fastening screws -2-  and remove front camera with housing -3-  from the front apron.

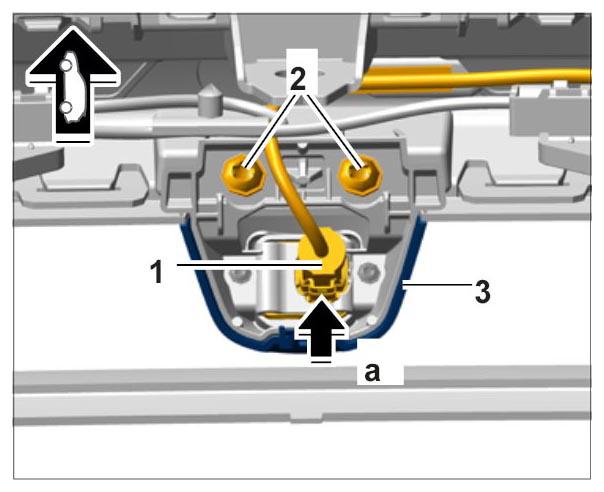

    Fig 1: Loosening Front Camera From Front Apron
    G09941797Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening screws -1-  .
  4. Disengage rear half of housing -2-  from front half of housing -3-  (-a-  ) and remove it.

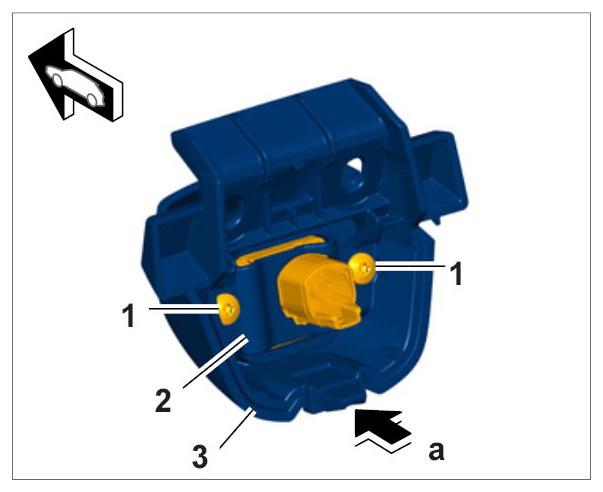

    Fig 2: Removing Front Camera
    G09941798Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove front camera -1-  from front half of housing -2-  .

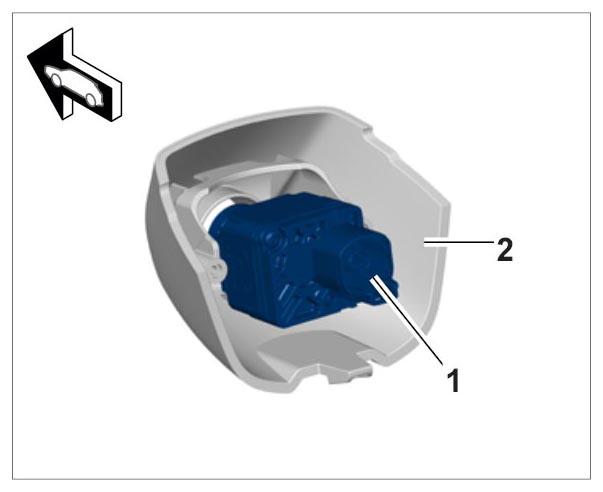

    Fig 3: Removing Front Camera
    G09941799Courtesy of PORSCHE CARS NORTH AMERICA, INC.
