Removing Outside Temperature Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off ignition and pull remote control out of ignition lock.
  2. Pull outside temperature sensor -1-  out of the right cooling-air duct -2-  on the front spoiler -arrow-  .
    Fig 1: Removing Outside Temperature Sensor
    G09941794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release electric plug connection -1-  (-arrow-  ) and pull off outside temperature sensor -2-  .

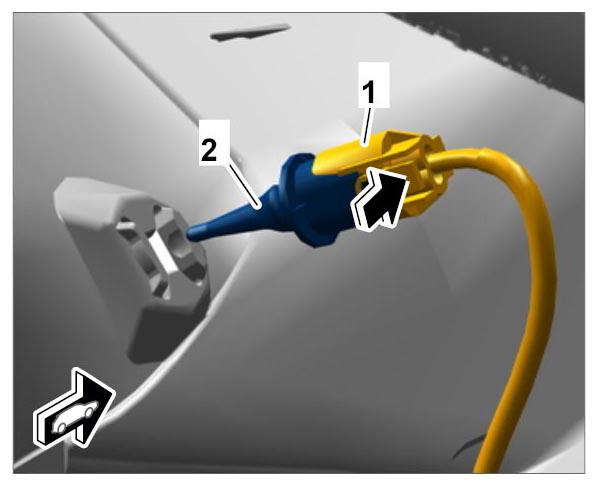

    Fig 2: Disconnecting Electric Plug Connection
    G09941795Courtesy of PORSCHE CARS NORTH AMERICA, INC.
